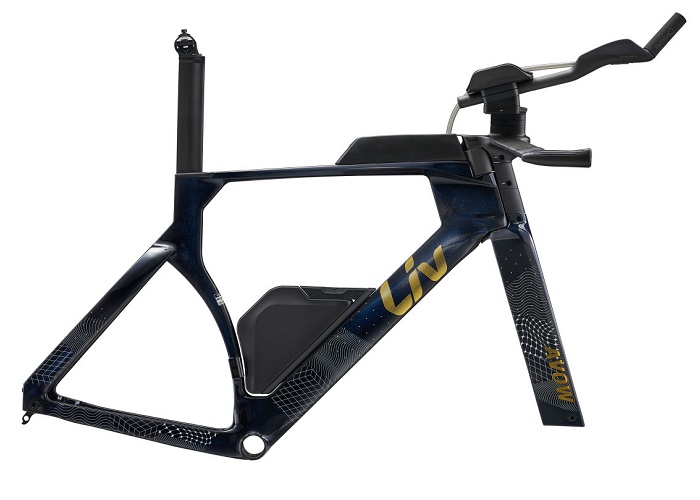

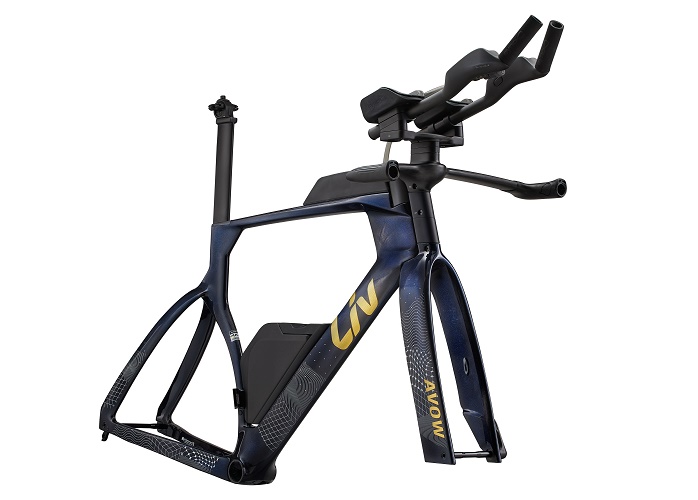

AVOW ADV SL TRI FRAMESET

- TO BE ANNOUNCED

Specification

Specification

Specs
  • Sizes
    XXS, XS, S, M
  • Colours
    Gloss Ultra Navy
  • Frame
    Advanced SL-grade composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-grade composite, full-composite steerer, 12x100mm, disc
  • Handlebar

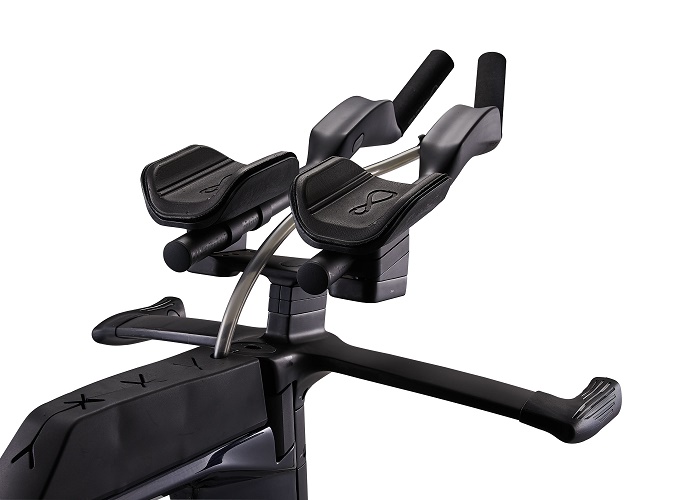

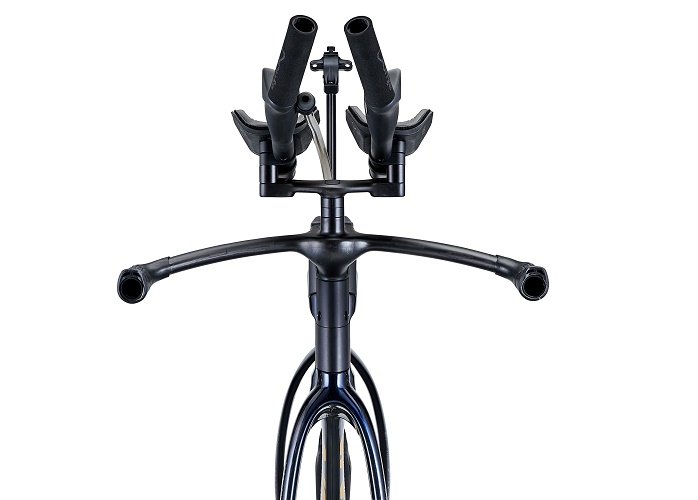

    AeroDrive base bar with Sync armrest set, 10- and 15-degree extension wedge
  • Grips
    N/A
  • Stem
    AeroDrive integrated stem
  • Seatpost
    Liv Avow Composite
  • Arm Rest Kit
    Sync armrest set
  • Rear Derailleur
    Electronic groupset only. Not compatible with mechanical shifting
  • Extras
    Bento box top tube storage, hydration kit, computer mount, 30mm max tyre size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • XXS
      151 cm to 161 cm
  • XS
      159 cm to 169 cm
  • S
      166 cm to 176 cm
  • M
      173 cm to 182 cm
bike diagram with measurements referenced in table that follows



    XXS XS S M
A Seat Tube Length (mm) 440 465 495 525
B Seat Tube Angle (degrees) 77.0° 77.0° 77.0° 77.0°
C Top Tube Length (mm) 493 510 530 554
D Head Tube Length (mm) 65 85 105 125
E Head Tube Angle (degrees) 71.0° 72.0° 73.0° 73.0°
F Fork Rake (mm) 40 40 40 40
G Trail (mm) 79 69 63 63
H Wheelbase (mm) 969 974 988 1013
I Chain Stay Length (mm) 405 405 405 405
J Bottom Bracket Drop (mm) 70 70 70 70
K Stack (mm) 467 490 513 532
L Reach (mm) 387 397 412 432
M Stand Over Height (mm) 733 758 786 814
N Handlebar Width (mm) 400 400 400 400
Q Wheel Size 700C 700C 700C 700C
R Arm Pad Stack 604-686 (Tri) | 556-640 (TT) 629-709 (Tri) | 582-662 (TT) 653-733 (Tri) | 605-685 (TT) 672-752 (Tri) | 624-704 (TT)
S Arm Pad Reach 309-383 (Tri) | 326-400 (TT) 323-398 (Tri) | 339-414 (TT) 340-415 (Tri) | 355-430 (TT) 360-435 (Tri) | 375-450 (TT)
