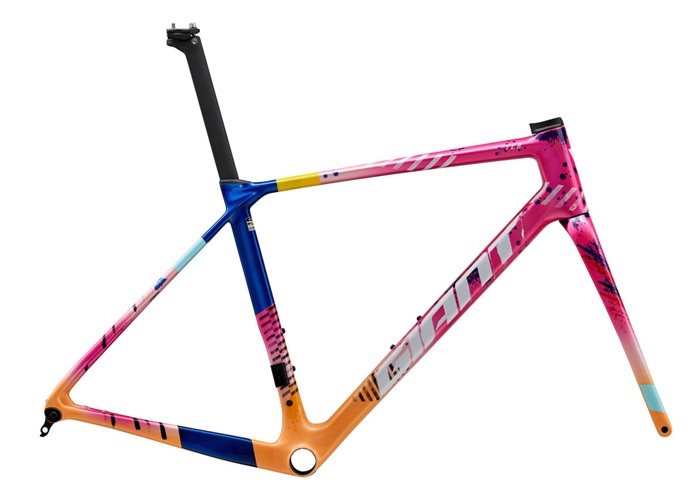

TCR ADV PRO FRAMESET 2026

R34,990.00 RRP

Features

Features

Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and sublime road handling.

Key Performance Factors

SYSTEM OPTIMIZATION

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Ice Age/Chrome, White/Venom Green, Snow Drift/Iris, Carnival
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Extras
    computer mount, tubeless prepared, 33mm max tire size
  • Max Tire Clearance
    33mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.




  • XS
      157 cm to 169 cm
  • S
      165 cm to 175 cm
  • M
      171 cm to 181 cm
  • ML
      177 cm to 187 cm
  • L
      183 cm to 193 cm
  • XL
      189 cm to 199 cm
bike diagram with measurements referenced in table that follows



  XS S M ML L XL
A Seat Tube Length (mm) 425 445 470 500 530 560
B Seat Tube Angle (degrees) 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle (degrees) 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
G Trail (mm) 72.1 64 59.2 59.2 59.2 59.2
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 70 70 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 719 734 752 768 786 803
N Handlebar Width (mm) 420 420 440 440 440 440
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 165 165 170 170 172.5 172.5
