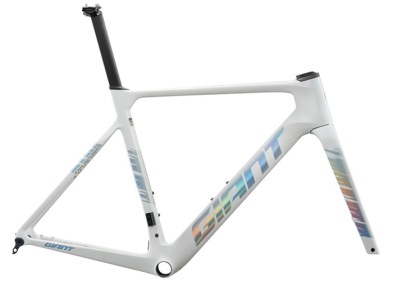

PROPEL ADV PRO FRAMESET 2026

R41,990.00 RRP

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Ray White/Iris
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Seatpost
    Giant Vector, composite, -5/+15mm offset
  • Extras
    computer mount, bottle cages, tubeless prepared, 32mm max tire size
  • Max Tire Clearance
    32mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

  • XS
      157 cm to 169 cm
  • S
      165 cm to 175 cm
  • M
      171 cm to 181 cm
  • ML
      177 cm to 187 cm
  • L
      183 cm to 193 cm
  • XL
      189 cm to 199 cm
bike diagram with measurements referenced in table that follows



  XS S M ML L XL
A Seat Tube Length (mm) 465 500 520 545 575 595
B Seat Tube Angle (degrees) 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle (degrees) 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
G Trail (mm) 70.5 62.5 57.8 57.8 57.8 57.8
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 70 70 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 722 753 770 794 821 834
N Handlebar Width (mm) 380 380 400 400 420 420
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 165 165 170 170 172.5 172.5
