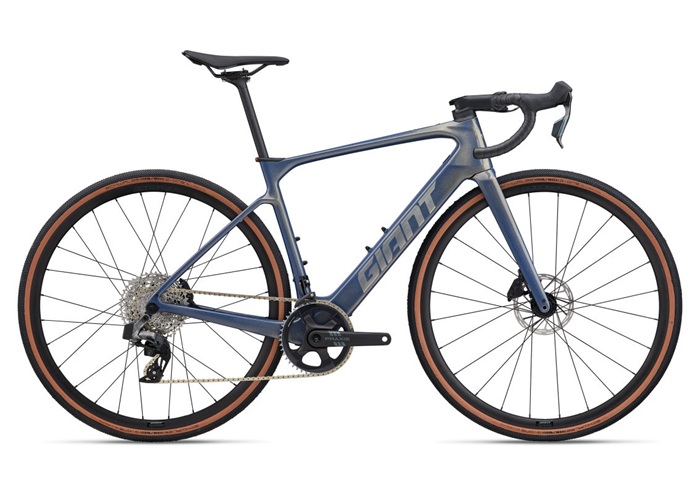

DEFY ADV E+ ELITE AR 2026

R129,990.00 RRP

Features

Features

With its smooth-riding composite frame, lightweight battery, new SyncDrive Move Plus integrated rear hub motor and all-road ready 35mm tyres, the Defy Advanced E+ AR is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.

Key Performance Factors

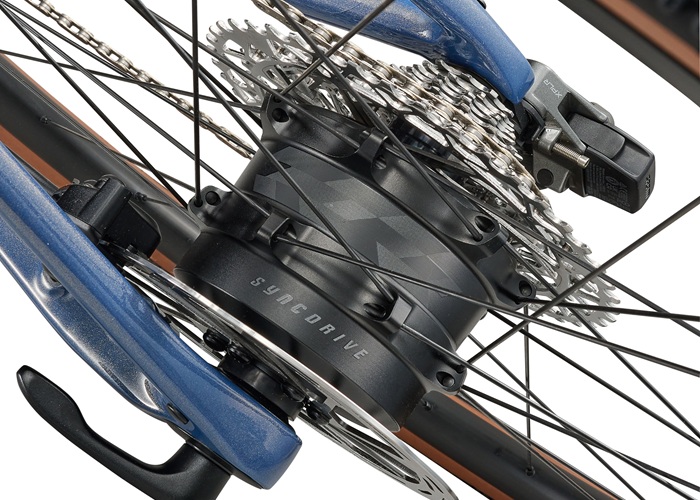

SEAMLESS POWER

The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedalling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION

The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE

A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with all-road ready 35mm tubeless tyres, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 400 / SyncDriveMove Plus


  • Range
  • Extreme: 40 km 24 miles
  • Good: 70 km 43 miles
  • Ideal: 100 km 62 miles

Specification

Specification

Specs
  • Motor
    Giant SyncDrive Move Plus, Rear Hub, 30Nm
  • Controller
    Mode support switch from SRAM Blips
  • Display
    Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak smart charger 4A
  • Maximum assisted speed
    Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
  • Connectivity
    Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, ML, L, XL
  • Colours
    Midnight Moon
  • Frame
    Advanced-grade composite,12x145 thru-axle
  • Fork
    Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
  • Shock
    -
  • Handlebar
    Giant Contact SL D-Fuse S:38/41cm, M:40/43cm, M/L:40/43cm, L:42/45cm, XL:42/45cm
  • Stem
    Giant Contact SL AeroLight S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Seatpost
    Giant D-Fuse, Composite, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    SRAM Rival AXS
  • Front Derailleur
    n/a
  • Rear Derailleur
    SRAM Rival XPLR AXS
  • Brakes
    SRAM Rival AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM Rival AXS hydraulic
  • Cassette
    SRAM Rival XPLR XG-1251, 12-speed, 10-44
  • Chain
    SRAM Rival D1
  • Crankset
    SRAM X-SYNC 46T BCD107 chain ring Praxis E Crank Alloy ISIS, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Giant E+ System BBSS
  • Rims
    Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle
  • Spokes
    Sapim spoke E-Light [R] Race [F], e-bike optimized
  • Tyres
    Schwalbe G-one Allround Performance, RaceGuard, Brown side-wall, tubeless, 700x35
  • Extras
    N/A

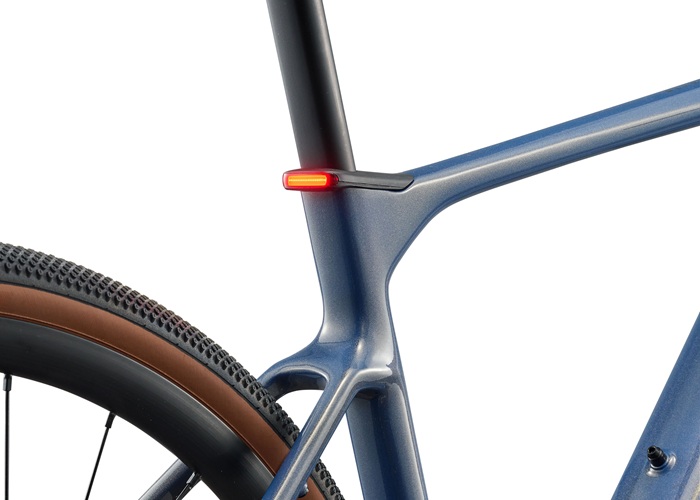

  • Lighting
    Seatpost clamp integrated tail light
  • Max Tyre Clearance
    38mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      166 cm to 174 cm
  • M
      172 cm to 180 cm
  • ML
      178 cm to 186 cm
  • L
      184 cm to 192 cm
bike diagram with measurements referenced in table that follows



  S M ML L
A Seat Tube Length (mm) 445 480 515 535
B Seat Tube Angle (degrees) 74.0° 73.5° 73.0° 73.0°
C Top Tube Length (mm) 530 545 560 575
D Head Tube Length (mm) 130 145 167 187
E Head Tube Angle (degrees) 71.5° 72.5° 72.5° 72.5°
F Fork Rake (mm) 50 50 50 50
H Wheelbase (mm) 994 995 1008 1023
I Chain Stay Length (mm) 420 420 420 420
J Bottom Bracket Drop (mm) 80 80 75 75
K Stack (mm) 542 560 576 595
L Reach (mm) 374 379 384 393
M Stand Over Height (mm) 716 746 779 799
O Stem Length (mm) 90 100 110 110
Q Wheel Size 700C 700C 700C 700C
