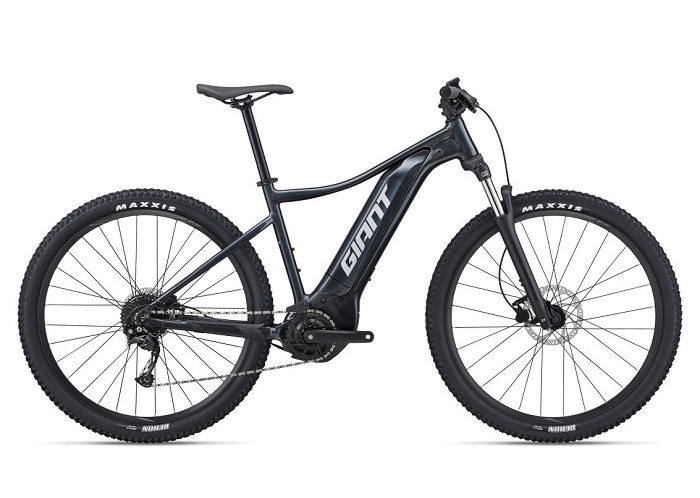

TALON E+ 3 29ER

R49,990.00 RRP

Features

Features

The trail is calling, and here’s your answer. This balanced, smooth-riding E-bike gives you a smooth boost of power and total control, so you can have more fun and expand your off-road riding capabilities.

Key Performance Factors

Smooth power delivery

The SyncDrive Core motor delivers smooth, instantaneous power to conquer all kinds of terrain and have more fun.

Balanced, confident handling

Lightweight aluminum frame with trail-friendly geometry, 100mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control on off-road terrain.

Long-lasting battery

Side Release EnergyPak with 400Wh of capacity is easy to charge with our 4A smart charger.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Energypak 400 / SyncDrive Core


  • Range
  • Extreme: 45 km 27 miles
  • Good: 80 km 49 miles
  • Ideal: 140 km 86 miles

Specification

Specification

Specs
  • Motor
    Giant SyncDrive Core, 55Nm, PedalPlus 6-sensor technology
  • Sensor
    Giant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
  • Display
    Giant RideControl Dash, high-angle visibility, full color LCD display
  • Battery
    Giant EnergyPak 400Wh, CO2 Neutral production
  • Charger
    Giant EnergyPak 4A fast charger, 60% charge in 1:45h
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, L, XL, XXL
  • Colors
    Gunmetal Black
  • Frame
    ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA18 kickstand mount
  • Fork
    SR Suntour XCM 32 ATB Coil NLO, 29" 100mm travel, Tapered 1½ - 1⅛" steerer
  • Shock
    n/a
  • Handlebar
    Giant Connect TR Riser 31.8x720~780mm (S: 720mm, M:750mm, L/XL/XXL: 780mm)
  • Grips
    Giant Sole-O Grip
  • Stem
    Giant Contact
  • Seatpost
    Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
  • Saddle
    Giant Sport
  • Pedals
    Aluminum Platform
  • Shifters
    Shimano Altus
  • Rear Derailleur
    Shimano Alivio, 9-speed
  • Brakes
    Tektro HD-M285, hydraulic disc, 180mm [F],160mm [R]
  • Brake Levers
    Tektro HD-M285
  • Cassette
    Shimano CS-HG200, 11-36T, 9-speed
  • Chain
    KMC e.9 Sport, e-bike optimized
  • Crankset
    FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T
  • Rims
    Giant GX03V, 29er, Alluminum
  • Hubs
    Giant eTracker Sport, [F] 9mm QR [R] 135mm QR
  • Spokes
    Stainless steel
  • Tires
    Maxxis Rekon 29x2.4" Wire Bead 60TPI
  • Lighting
    -
  • Carrier
    -
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      162 cm to 172 cm
  • M
      169 cm to 179 cm
  • L
      176 cm to 186 cm
  • XL
      183 cm to 193 cm
  • XXL
      190 cm to 200 cm
bike diagram with measurements referenced in table that follows



    S M L XL XXL
A Seat Tube Length (mm) 405 455 505 535 560
B Seat Tube Angle (degrees) 73.0° 73.0° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 575 600 625 650 675
D Head Tube Length (mm) 105 115 125 140 155
E Head Tube Angle (degrees) 68.0° 68.0° 68.0° 68.0° 68.0°
F Fork Rake (mm) 46 46 46 46 46
G Trail (mm) 100.7 100.7 100.7 100.7 101
H Wheelbase (mm) 1141 1167 1193 1219 1245
I Chain Stay Length (mm) 475 475 475 475 475
J Bottom Bracket Drop (mm) 45 45 45 45 45
K Stack (mm) 625 634 643 657 671
L Reach (mm) 384 406 428 449 470
M Stand Over Height (mm) 723 753 788 808 828
N Handlebar Width (mm) 690 750 750 780 780
O Stem Length (mm) 50 60 60 70 70
P Crank Length (mm) 160 165 170 170 170
Q Wheel Size 29" 29" 29" 29" 29"
