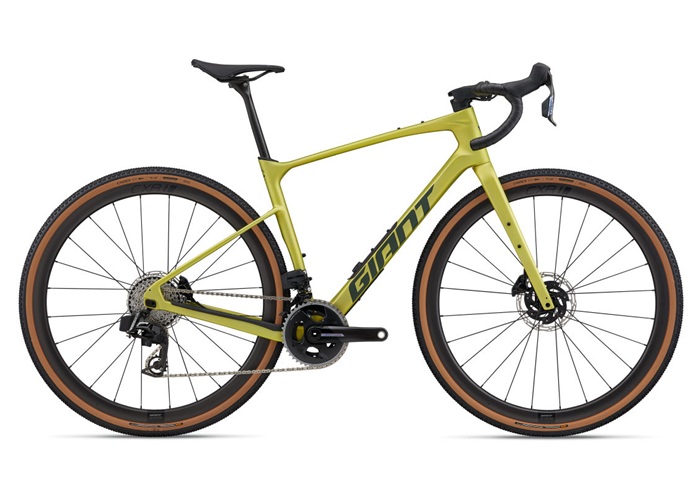

REVOLT ADV PRO 0 2026

R139,990.00 RRP

Features

Features

GRAVEL CRUSHER

Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.

Key Performance Factors

FAST AND VERSATILE

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the down tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Cyber Lime
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
  • Fork
    Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar
    Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse SLR, composite, -5/+15mm offset
  • Saddle
    Giant Grit SL
  • Pedals
    no pedal [GA, Pan-Eu], platform pedal [GU, GV, GJ]
  • Shifters
    SRAM Force AXS E1, 2x12
  • Front Derailleur
    SRAM Force AXS D2
  • Rear Derailleur
    SRAM Force AXS E1
  • Brakes
    SRAM Force AXS E1 hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM Force AXS E1 hydraulic
  • Cassette
    SRAM Force E1, 12-speed, 10x36
  • Chain
    SRAM Force E1
  • Crankset
    SRAM Force D2 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant CXR 1 WheelSystem, [F] 35mm, [R] 35mm
  • Hubs
    [F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    Sapim CX-Ray
  • Tires
    CADEX GX, 700x40c, tubeless
  • Extras
    tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
  • Max Tire Clearance
    53mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


All prices and specifications are subject to change without notice.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      159 cm to 171 cm
  • M
      169 cm to 181 cm
  • ML
      174 cm to 186 cm
  • L
      179 cm to 191 cm
  • XL
      189 cm to 200 cm
bike diagram with measurements referenced in table that follows



  S M ML L XL
  SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 450 470 490 510 530
B Seat Tube Angle (degrees) 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 550 560 575 585 600
D Head Tube Length (mm) 135 150 165 180 195
E Head Tube Angle (degrees) 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50
G Trail (mm) 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 570 586 602 616 630
L Reach (mm) 381 387 391 397 407
M Stand Over Height (mm) 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
N Handlebar Width (mm) 420 440 440 460 460
O Stem Length (mm) 60 70 80 80 90
P Crank Length (mm) 170 172.5 172.5 175 175
