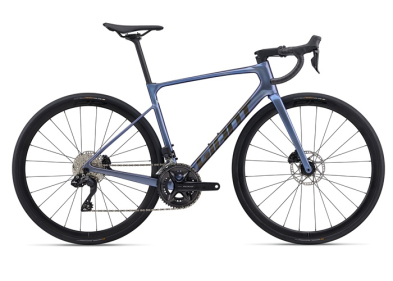

DEFY ADV 1 2026

R74,990.00 RRP

Features

Features

With effortless efficiency and quiet compliance, this lightweight endurance road machine helps you ride stronger and longer. The composite frame and purpose-built components smooth out rough roads and minimize fatigue.

Key Performance Factors

Functional simplicity

Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.

Engineered compliance

Advanced-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimizes fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.

Total control

New Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, alloy rims are optimized for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to cobbles.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Thundercloud/Chrome
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SL D-Fuse XS:404/380mm, S:404/380mm, M:424/400mm, M/L:424/400mm, L:444/420mm, XL:444/420mm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    platform pedal [GCS,GTS], N/A [all other GSC]
  • Shifters
    Shimano 105 Di2
  • Front Derailleur
    Shimano 105 Di2
  • Rear Derailleur
    Shimano 105 Di2
  • Brakes
    Shimano 105 Di2 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano 105 Di2
  • Cassette
    Shimano 105, 12-speed, 11x36
  • Chain
    KMC X12L-1
  • Crankset
    Shimano 105, 34/50 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-R1 Disc wheelset, alloy, [F]25mm, [R]25mm
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Giant Gavia Fondo 0, tubeless, 700x32c (33.5mm), folding
  • Extras
    tubeless prepared, 40mm max tire size
  • Max Tire Clearance
    40mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  XS S M ML L XL
A Seat Tube Length (mm) 410 445 480 515 535 565
B Seat Tube Angle (degrees) 74.5° 74.0° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 515 530 545 560 575 595
D Head Tube Length (mm) 120 140 150 175 195 215
E Head Tube Angle (degrees) 70.5° 71.8° 72.5° 72.5° 72.5° 72.5°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 71.6 63.4 58.6 58.6 58.6 58.6
H Wheelbase (mm) 995 994 998 1010 1025 1040
I Chain Stay Length (mm) 420 420 420 420 420 420
J Bottom Bracket Drop (mm) 75 75 75 70 70 70
K Stack (mm) 527 541 558 577 596 615
L Reach (mm) 369 375 380 384 393 402
M Stand Over Height (mm) 705 733 762 796 814 841
N Handlebar Width (mm) 410 410 430 430 450 450
O Stem Length (mm) 80 90 100 100 110 110
P Crank Length (mm) 165 165 170 170 172.5 172.5
