STANCE 29ER 1 2024

- TO BE ANNOUNCED

Features

Features

This all-new 29er dials up the fun with smooth suspension front and rear. From flow trails to chunky technical challenges, its balanced geometry and confident handling can help any rider step up their game.

Key Performance Factors

Attainable trail performance

Handcrafted with lightweight, stiff and durable ALUXX aluminum, the new Stance 29 is an ideal entry to full-suspension MTB performance.

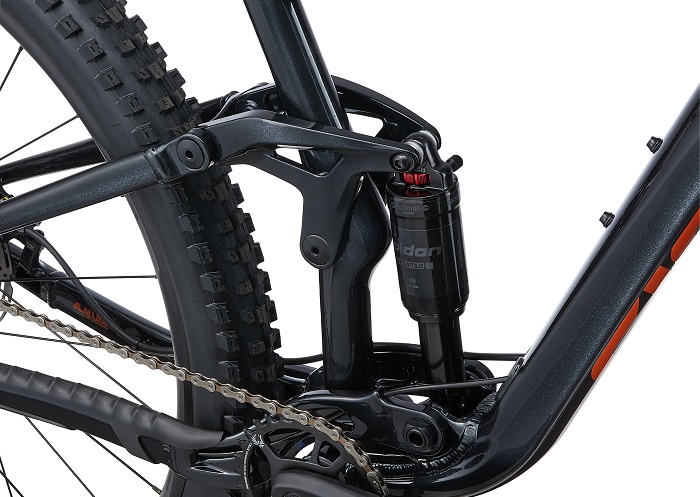

Smooth suspension

FlexPoint Suspension helps riders tackle challenging terrain and improve their trail riding capabilities. With 125mm of rear wheel travel and 140mm up front, it’s a versatile all-rounder for a variety of terrain.

29er confidence and control

Larger diameter wheels roll over rugged terrain with improved balance and stability. With frame geometry that’s optimized for 29-inch wheels, Stance 29 helps riders maintain momentum, carry speed, and tackle technical trails with greater ease.

Specification

Specification

Specs
  • Sizes
    S, M, L, XL
  • Colors
    Metallic Black
  • Frame
    ALUXX-grade aluminum, 125mm FlexPoint suspension, 12x148mm thru-axle
  • Fork
    Crest 34 SL RCL, 140mm, Boost 15x110 QR, custom tuned for Giant
  • Shock
    Suntour Raidon R, 190x45
  • Handlebar
    Giant Contact SL TR35, 780x35mm
  • Grips
    Giant Sole-O
  • Stem
    Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
  • Seatpost
    Giant Contact Switch AT dropper, remote S: 140mm - 110mm travel / 30.9 x 395mm M: 170mm - 140mm travel / 30.9 x 470mm L: 200mm - 170mm travel / 30.9 x 530mm XL: 200mm - 170mm travel / 30.9 x 530mm
  • Saddle
    Giant Romero
  • Pedals
    N/A
  • Shifters
    SRAM SX Eagle, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM SX Eagle
  • Brakes
    Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
  • Brake Levers
    Shimano BL-MT401
  • Cassette
    SRAM SX Eagle, 11x50
  • Chain
    SRAM SX Eagle
  • Crankset
    SRAM SX Eagle PowerSpline, 30t S:165mm, M:170mm, L:170mm, XL:170mm
  • Bottom Bracket
    SRAM PowerSpline, threaded
  • Rims
    Giant AM 29 alloy, tubeless ready
  • Hubs
    [F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport QR141, loose ball
  • Spokes
    Sapim
  • Tires
    [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, Dual, EXO, TR, tubeless
  • Extras
    tubeless prepared, max tire size 2.4", max chainring size 32t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • M
      171 cm to 180 cm
  • L
      179 cm to 188 cm
bike diagram with measurements referenced in table that follows



    M L
A Seat Tube Length (mm) 425 450
A1 Seat Post Insertion Depth (mm) 242 268
B Seat Tube Angle (degrees) 76.5° 76.5°
C Top Tube Length (mm) 595 622
D Head Tube Length (mm) 110 120
E Head Tube Angle (degrees) 65.5° 65.5°
F Fork Rake (mm) 44 44
G Trail (mm) 124.4 124.4
H Wheelbase (mm) 1198 1227
I Chain Stay Length (mm) 440 440
J Bottom Bracket Drop (mm) 40 40
K Stack (mm) 623 632
L Reach (mm) 445 470
M Stand Over Height (mm) 734 753
N Handlebar Width (mm) 780 780
O Stem Length (mm) 40 50
P Crank Length (mm) 170 170
Q Wheel Size [F] 29" [R [F] 29" [R
