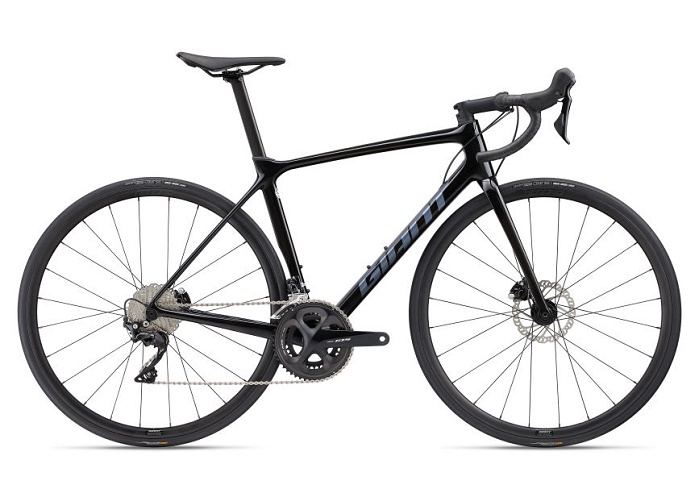

TCR ADV 2 DISC PC

R52,150.00 RRP

Features

Features

Gunning for the race win or digging deep for a PR, this composite road racing bike gives you the speed, efficiency and control to push it to the limit, and then a little bit more.

Key Performance Factors

Class-leading efficiency

With an impressive stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Carbon / Knight Shield, Hematite
  • Frame
    Advanced-Grade Composite, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive steerer, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
  • Grips
    Stratus Lite 2.0
  • Stem
    Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    Shimano 105
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105
  • Brakes
    Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
  • Brake Levers
    Shimano 105 hydraulic
  • Cassette
    Shimano 105, 11-speed, 11x30
  • Chain
    KMC X11EL-1
  • Crankset
    Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-R2 Disc wheelset
  • Hubs
    Giant P-R2 Disc wheelset, 12mm thru-axle
  • Spokes
    Giant P-R2 Disc wheelset
  • Tires
    Giant Course 1, tubeless, 700x25c (28mm), folding
  • Extras
    tubeless prepared, 32mm max tire size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

<a class="btn" btn-default="" data-cke-saved-href="/za/bikes/generate-pdf-url/2752" href="/za/bikes/generate-pdf-url/2752" onclick="trackEventGlobalAndLocal('PDF','Download','Giant" -="" tcr="" advanced="" disc="" 2="" pro="" compact="" 2752')="" rel="nofollow" target="_blank"> Download PDF

<a class="btn" btn-default="" data-cke-saved-href="/za/bikes/generate-pdf-url/2752" href="/za/bikes/generate-pdf-url/2752" onclick="trackEventGlobalAndLocal('PDF','Download','Giant" -="" tcr="" advanced="" disc="" 2="" pro="" compact="" 2752')="" rel="nofollow" target="_blank">All specifications listed are subject to change without notice.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.



  • XS
      157 cm5’2” to 169 cm5’7”
  • S
      165 cm5’5” to 175 cm5’9”
  • M
      171 cm5’7” to 181 cm5’11”
  • ML
      177 cm5’10” to 187 cm6’2”
  • L
      183 cm6’0” to 193 cm6’4”
  • XL
      189 cm6’2” to 199 cm6’6”
bike



    XS S M ML L XL
A Seat Tube Length (mm) (inch) 42516,7 44517,5 47018,5 50019,7 53020,9 56022
B Seat Tube Angle (degrees) 74,5° 74,0° 73,5° 73,0° 73,0° 72,5°
C Top Tube Length (mm) (inch) 52020,5 53521,1 55021,7 56522,2 58022,8 60023,6
D Head Tube Length (mm) (inch) 1204,7 1305,1 1455,7 1656,5 1857,3 2007,9
E Head Tube Angle (degrees) 71,0° 72,3° 73,0° 73,0° 73,0° 73,0°
F Fork Rake (mm) (inch) 451,8 451,8 451,8 451,8 451,8 451,8
G Trail (mm) (inch) 72,12,8 642,5 59,22,3 59,22,3 59,22,3 59,22,3
H Wheelbase (mm) (inch) 97638,4 97738,5 98038,6 99139 100639,6 102040,2
I Chain Stay Length (mm) (inch) 40515,9 40515,9 40515,9 40515,9 40515,9 40515,9
J Bottom Bracket Drop (mm) (inch) 722,8 702,8 702,8 672,6 672,6 672,6
K Stack (mm) (inch) 51720,4 52820,8 54521,5 56222,1 58122,9 59623,5
L Reach (mm) (inch) 37614,8 38315,1 38815,3 39315,5 40215,8 41216,2
M Stand Over Height (mm) (inch) 70627,8 72528,5 74729,4 77330,4 80031,5 81632,1
N Handlebar Width (mm) (inch) 40015,7 40015,7 42016,5 42016,5 44017,3 44017,3
O Stem Length (mm) (inch) 803,1 903,5 1003,9 1104,3 1104,3 1204,7
P Crank Length (mm) (inch) 1706,7 1706,7 172,56,8 172,56,8 1756,9 1756,9
Q Wheel Size 700C 700C 700C 700C 700C 700C
