SALE

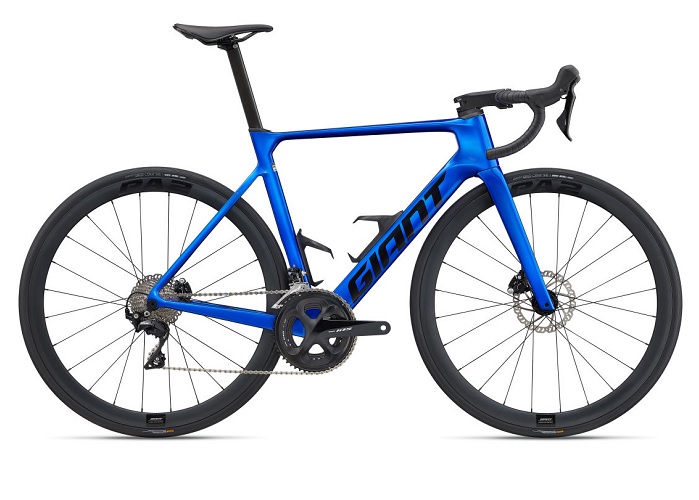

PROPEL ADV 2

was R60,070.00

now R49,990.00 RRP

XL

Features

Features

This aero rocketship is built for speed when it matters most. It’s lighter than the previous generation and engineered to slice through wind. The result? Race-winning efficiency that puts you ahead of the pack.

Key Performance Factors

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.

Easier adjustability

All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency

Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s lighter than the previous generation for an even greater stiffness-to-weight ratio.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Cobalt
  • Frame
    Advanced-Grade Composite, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive Aero steerer, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SL Aero XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
  • Grips
    Stratus Lite 2.0
  • Stem
    Giant Contact SL Aero, OverDrive Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Seatpost
    Giant Vector, composite, -5/+15mm offset
  • Saddle
    Giant Fleet SL
  • Pedals
    N/A
  • Shifters
    Shimano 105
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105
  • Brakes
    Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
  • Brake Levers
    Shimano 105 hydraulic
  • Cassette
    Shimano 105, 11-speed, 11x30
  • Chain
    KMC X11EL-1
  • Crankset
    Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-A2 Disc, alloy
  • Hubs
    Giant P-A2 Disc, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Giant Gavia Course 1, tubeless,700x25c (28mm), folding
  • Extras
    computer mount, water bottle cages, tubeless prepared, 30mm max tire size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.




  • XS
      157 cm5’2” to 169 cm5’7”
  • S
      165 cm5’5” to 175 cm5’9”
  • M
      171 cm5’7” to 181 cm5’11”
  • ML
      177 cm5’10” to 187 cm6’2”
  • L
      183 cm6’0” to 193 cm6’4”
  • XL
      189 cm6’2” to 199 cm6’6”
bike



    XS S M ML L XL
A Seat Tube Length (mm) (inch) 46518.3 50019.7 52020.5 54521.5 57522.6 59523.4
B Seat Tube Angle (degrees) 74.5° 73.5° 73.0° 73.0° 73.0° 72.0°
C Top Tube Length (mm) (inch) 52020.5 53521.1 55021.7 56522.2 58022.8 60023.6
D Head Tube Length (mm) (inch) 1204.7 1305.1 1455.7 1656.5 1857.3 2007.9
E Head Tube Angle (degrees) 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) (inch) 451.8 451.8 451.8 451.8 451.8 451.8
G Trail (mm) (inch) 72.12.8 642.5 59.22.3 59.22.3 59.22.3 59.22.3
H Wheelbase (mm) (inch) 97638.4 97738.5 98038.6 99139 100639.6 102040.2
I Chain Stay Length (mm) (inch) 40515.9 40515.9 40515.9 40515.9 40515.9 40515.9
J Bottom Bracket Drop (mm) (inch) 702.8 682.7 682.7 652.6 652.6 652.6
K Stack (mm) (inch) 51720.4 52820.8 54521.5 56222.1 58122.9 59623.5
L Reach (mm) (inch) 37614.8 38315.1 38815.3 39315.5 40215.8 41216.2
M Stand Over Height (mm) (inch) 72228.4 75329.6 77030.3 79431.3 82132.3 83432.8
N Handlebar Width (mm) (inch) 40015.7 40015.7 42016.5 42016.5 44017.3 44017.3
O Stem Length (mm) (inch) 803.1 903.5 1003.9 1104.3 1104.3 1204.7
P Crank Length (mm) (inch) 1706.7 1706.7 172.56.8 172.56.8 1756.9 1756.9
Q Wheel Size 700C 700C 700C 700C 700C 700C
