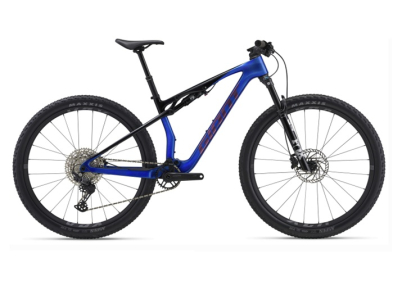

ANTHEM ADV SL 3 2026

R74,990.00 RRP

Features

Features

Developed to help Giant pro Alan Hatherly win the 2025 Elite Men’s XCO World Championship, this superlight XC composite flyer is engineered with a semi-integrated 120mm FlexPoint Pro rear suspension system and a flip chip to adjust geometry for any racecourse or XC terrain.

Key Performance Factors

TOTAL CONTROL

The new FlexPoint Pro suspension delivers 120mm of smooth, active rear travel paired with a 120mm fork—helping you fly down rough descents and power up technical climbs. A flip chip lets you fine tune handling for all types of XC terrain. Superlight composite or alloy Giant WheelSystems (depending on model) with a next-generation 120-tooth helical ratchet drive system for immediate power and robust 5mm rim sidewalls for greater protection against impacts and punctures.

LOW-LATENCY SPEED CONCEPT

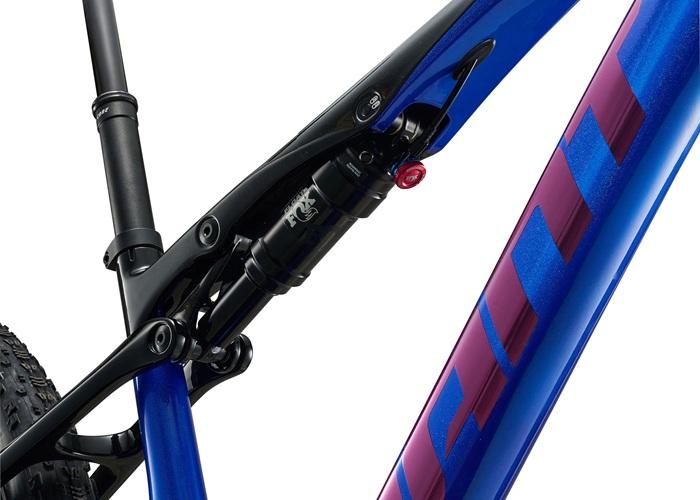

A fully reengineered composite frameset is 89 grams lighter than it predecessor, with 7.95 percent greater stiffness-to-weight ratio (efficiency) to help you power up climbs and make every watt count. The WheelSystems and integrated handlebar/stem units are designed for maximum efficiency and instantaneous response to rider input. The rear shock is repositioned and semi-integrated with the top tube, shaving weight and creating space for a second water bottle cage.

SYSTEM INTEGRATION

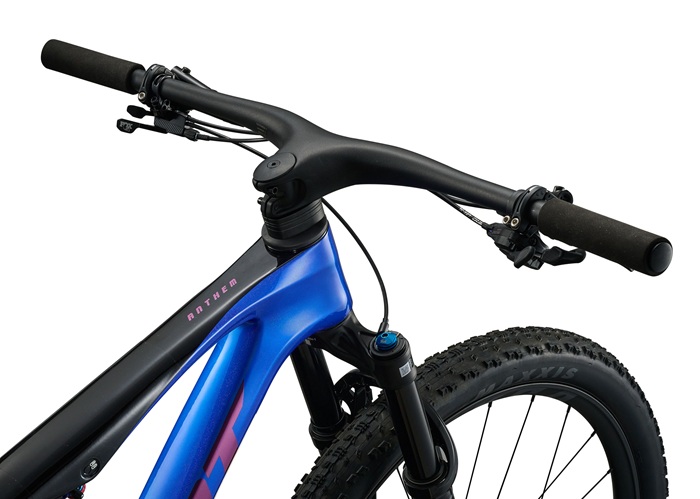

A new one-piece integrated handlebar/stem unit adds compliance to reduce shocks and vibrations, improving control and hand comfort. It’s available in two models—the Contact SLR XC Integrated composite and Contact SL XC Integrated alloy. Both feature the same seamless cable routing and versatile sizing with a 780mm standard width and stem lengths ranging from 50-90mm.

Specification

Specification

Specs
  • Sizes
    S, M, L, XL
  • Colors
    Carbon/Moon Dust
  • Frame
    Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle
  • Fork
    Fox 34 SL Performance, 120mm, GRIP damper, Boost 15x110, 44mm offset, remote lockout
  • Shock
    Fox Float SL Performance Elite, 3-position damper, 210/50, 3-position lockout
  • Handlebar
    Giant Integrated XC, alloy, 780mm, 9-degree upsweep
  • Grips
    Giant XC Pro, silicone
  • Stem
    Giant Integrated XC Alloy S:60mm, M:70mm, L:70mm, XL:80mm
  • Seatpost
    Giant Core dropper, remote S: 100mm travel / 30.9 x 395mm M: 120mm travel / 30.9 x 395mm L: 120mm travel / 30.9 x
  • Saddle
    Giant Grit
  • Pedals
    N/A
  • Shifters
    Shimano Deore mechanical, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore
  • Brakes
    Shimano BR-MT500, hydraulic, Giant TR55 rotors [F]180mm, [R]160mm
  • Brake Levers
    Shimano BL-MT501
  • Cassette
    Shimano M6100, 10x51
  • Chain
    KMC X-12
  • Crankset
    Praxis Cadet HD M24, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm
  • Bottom Bracket
    Praxis, press fit
  • Rims
    Giant XCA 29 WheelSystem
  • Hubs
    [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 6-bolt
  • Spokes
    Sapim
  • Tires
    Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless
  • Extras
    tubeless prepared, 2.4" max tire size, 34t max chainring size, MRP 1x CS chain guide
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

  • S
      163 cm  to 172 cm
  • M
      171 cm  to 180 cm
  • L
      179 cm  to 188 cm
  • XL
      187 cm  to 198 cm
bike diagram with measurements referenced in table that follows



  S M L XL
  LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 400 420 465 495
B Seat Tube Angle (degrees) 75.5° | 76.0° 75.5° | 76.0° 75.5° | 76.0° 75.5° | 76.0°
C Top Tube Length (mm) 576 | 574 602 | 600 624 | 623 651 | 650
D Head Tube Length (mm) 90 95 105 115
E Head Tube Angle (degrees) 66.5° | 67.0° 66.5° | 67.0° 66.5° | 67.0° 66.5° | 67.0°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 116 | 112.2 115.9 | 112.2 115.9 | 112.2 115.8 | 112.2
H Wheelbase (mm) 1141 | 1140 1168 | 1167 1192 | 1191 1221 | 1220
I Chain Stay Length (mm) 437 | 435 437 | 435 437 | 435 437 | 435
J Bottom Bracket Drop (mm) 51 | 45 51 | 45 52 | 45 52 | 45
K Stack (mm) 602 | 599 607 | 603 616 | 612 626 | 622
L Reach (mm) 420 | 425 445 | 450 465 | 470 490 | 495
M Stand Over Height (mm) 769 | 775 764 | 771 758 | 763 751 | 758
O Stem Length (mm) 60 70 70 80
P Crank Length (mm) 170 170 175 175
