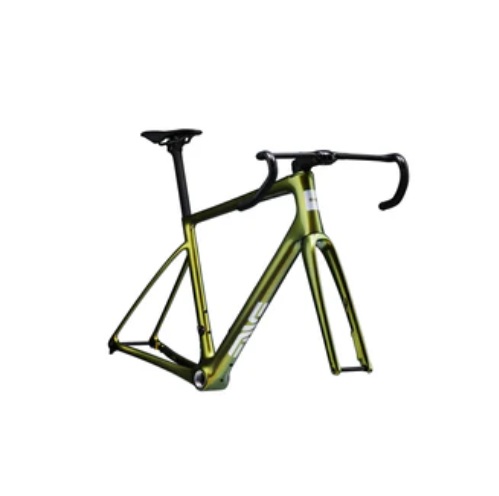

ENVE FRAY FRAMESETFRAMESET COMPRISES OF FRAME, FORK, HEADSET, AXLES, SEATCLAMP and DROPOUT

FRAMESET COMPRISES OF FRAME, FORK, HEADSET, AXLES, SEATCLAMP and DROPOUT
R104,690.00 RRP
58CM

Features

Features

FRAMESET COMPRISES OF FRAME, FORK, HEADSET, AXLES, SEATCLAMP and DROPOUT

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

  • Real-World Fast™ aero optimization
  • Geometry optimized for 31mm - 35mm tires
  • Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
  • ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
  • Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
  • Aero tube shapes & design that complements SES rim shapes
  • Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
  • Frame Weight 900g (Size 56cm Painted, No Hardware)

Specification

Specification

Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43
Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51,
56cm/47, 58cm/47, 60cm/43
Frame Weight 900g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5″ IS52 Upper and Lower
Seat Post Diameter ENVE Aero
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 27mm
Optimal Tire Size 31mm - 35mm
Maximum Listed Tire Clearance 1x 40mm
Maximum Listed Tire Clearance 2x 38mm
In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing Internal
Waterbottle Capacity 3
Top Tube Mounts Yes
Fender Compatible Yes
Wheel Size 700c

Geometry

Geometry

  47 50 52 54 56 58 60
Reach 365 371 377 383 389 396 403
Stack 522 540 556 573 591 610 633
Top Tube 510 524 539 552 565 581 599
Rake 55 55 51 51 47 47 43
Seattube Length(C to top) 426 445 465 480 502 519 529
Max Saddle Rail Height with 275mm Post 676 695 715 730 752 769 779
Max Saddle Rail Height with 350mm Post 701 720 740 755 777 794 804
Max Saddle Rail Height with 400mm Post 751 770 790 805 827 844 854
Seattube Angle 75 74.5 74 73.75 73.5 73.2 72.75
Headtube Angle 70.9 71.3 72 72 72.6 72.6 73.3
Headtube Length 107 125 137 157 172 194 215
Bottom Bracket Drop 78 78 78 76 76 74 74
Chainstay Length 415 415 415 415 415 417 420
Wheel Base 985 994 994 1006 1008 1024 1029
Front Center 577 586 591 598 600 613 616
Standover 699 718 738 756 777 797 824
Bottom Bracket Height (31mm Tire) 264 264 264 266 266 268 268
Trail (29mm Tire) 60.2 58 57.5 57.5 57.9 57.9 57.7
Trail (31mm Tire) 61.1 58.9 58.3 58.3 58.7 58.7 58.5
Trail (33mm Tire) 62 59.7 59.1 59.1 59.5 59.5 59.2
Trail (35mm Tire 62.8 60.6 59.9 59.9 60.3 60.3 60
