350000370/371 CADEX W/SET 40 MAX DISC TUBELESS

Item Code: WS-007-C

R72,499.00 RRP

Features

Features

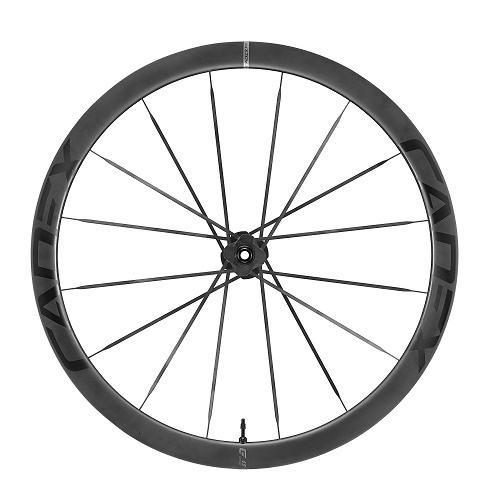

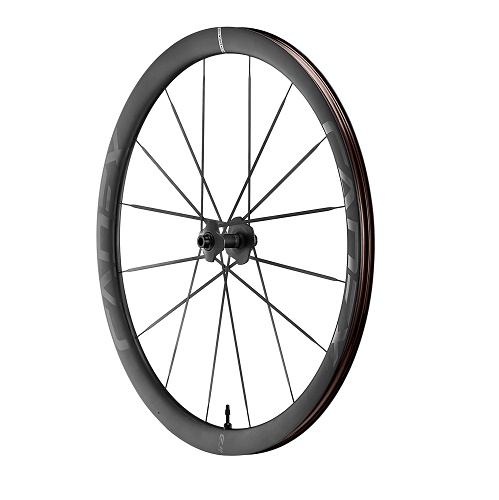

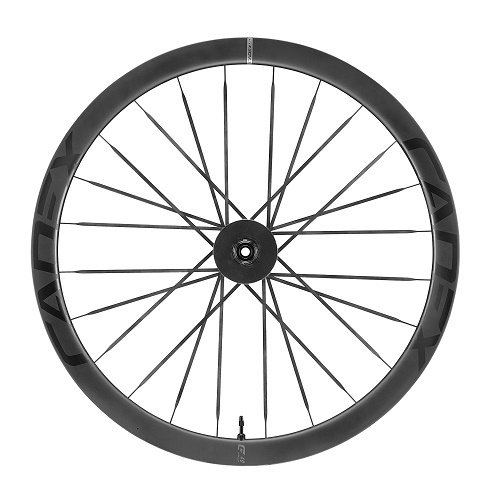

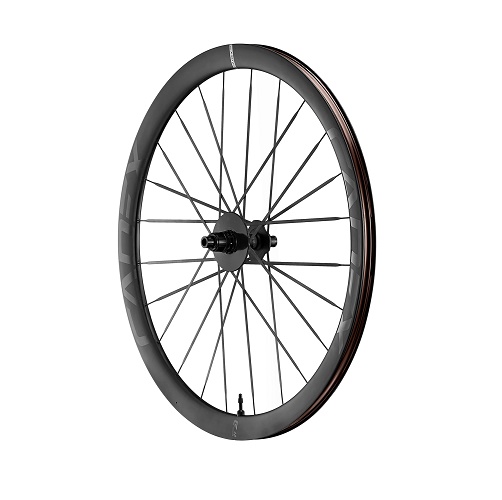

CADEX Max 40 Disc Tubeless

TAKE FLIGHT

With cutting-edge hub-and-spoke technology and a new 40mm rim profile, this
is the lightest WheelSystem ever created by CADEX. Super Aero bladed carbon spokes are seamlessly integrated with thin aero hub flanges to reduce weight and drag, while Dynamic Balanced Lacing technology sets the spokes at a wider bracing angle to stabilize tension under force and boost power transfer. The 40mm deep carbon rims help keep overall weight at just 1249 grams, and a broad 22.4mm hookless inner rim width offers better tire sidewall support and improved control.
Features
  • Integrated spoke, hub flange and aero hub design for optimal weight savings, better power transfer, and improved aerodynamics.
  • CADEX hookless rim technology with optimized carbon layup improves durability and tire performance at a superlight weight.
  • High-tensile-strength integrated CADEX Super Aero spokes with hidden nipples and independent internal spoke tension adjustment minimize lateral flex for more
    efficient acceleration and climbing.
  • Dynamic Balanced Lacing technology sets spokes at a wider bracing angle to stabilize spoke tension levels under pedaling force, producing a stiffer, more efficient wheel with outstanding power transfer.
  • 48-tooth ratchet engagement in the CADEX R3-C48 Aero Hub offers more immediate power transfer.
  • CADEX Ratchet Wave Spring ensures the outer and inner ratchet rings engage with consistent and even force for smoother action and better rolling efficiency.
  • Broad 22.4mm inner rim width creates a rounder tire profile and increased tire contact patch for better sidewall support, improved handling, and less rider fatigue.
  • 40mm rim profile delivers exceptional stability and aero benefits for all-day efforts.
  • In-mold carbon surface graphic technology blends CADEX logos into the carbon rim surface without the need for etching or decals.

Specification

Specification

Specifications


Rim Material: Carbon

Rim Type: Hookless

Tubeless: CADEX Tubeless System (rim tape and valve kit included)

Suggested Tire Size: 700 x 25C – 700 x 32C

Rim Height: 40mm

Rim Outer Width: 28mm

Rim Inner Width: 22.4mm

ETRTO: 622-22

Front Hub: CADEX R3 , Centerlock One-piece integrated hub and spokes

Rear Hub: CADEX R3-C48, Ratchet Driver, Centerlock One-piece integrated hub and spokes

Hub Compatibility: Shimano / SRAM XDR / Campagnolo N3W

Bearings: Ceramic

Front Axle: 100x12mm Thru Axle

Rear Axle: 142x12mm Thru Axle

Front Spokes: Super Aero Carbon Spoke

Front Lacing: DBL, 16H

Rear Spokes: Super Aero Carbon Spoke

Rear Lacing: DBL, 24H

Nipple: Hidden Integrated Alloy Nipple

Warranty: 2 years for original owner/ Life time for original owner with product registration

Incident Replacement: 5 years for original owner with product registration

Weight (Pair): 1249g (with Shimano freehub)
