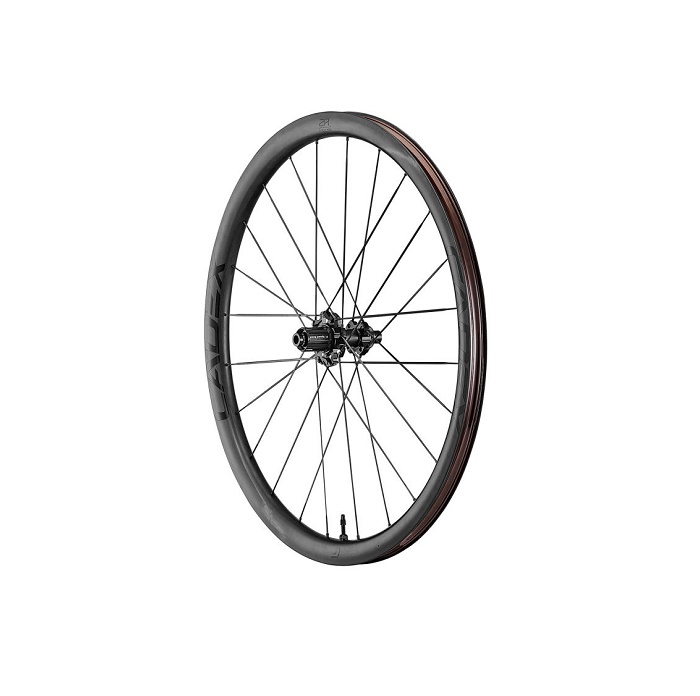

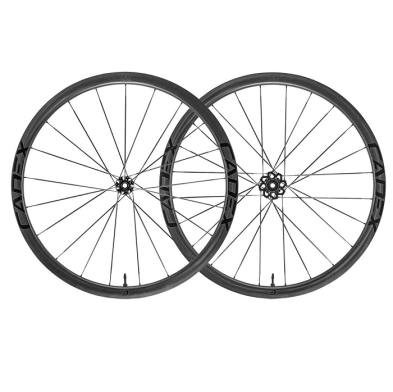

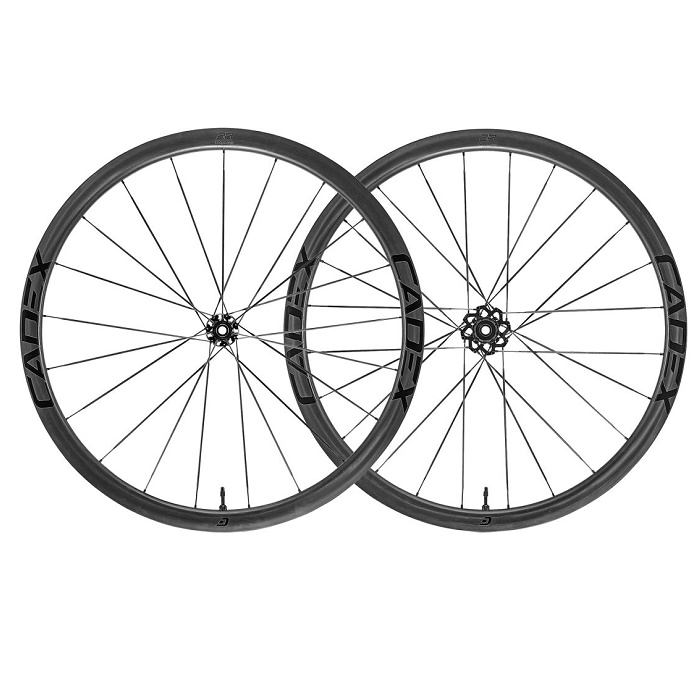

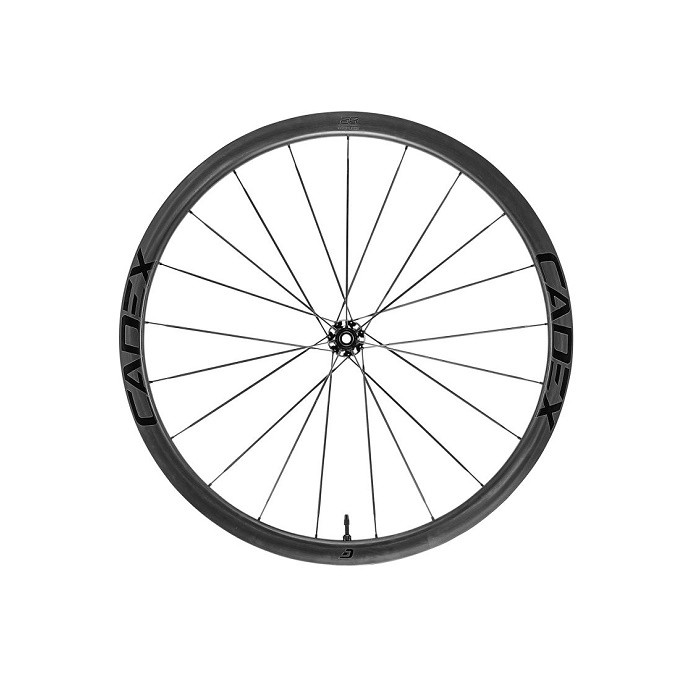

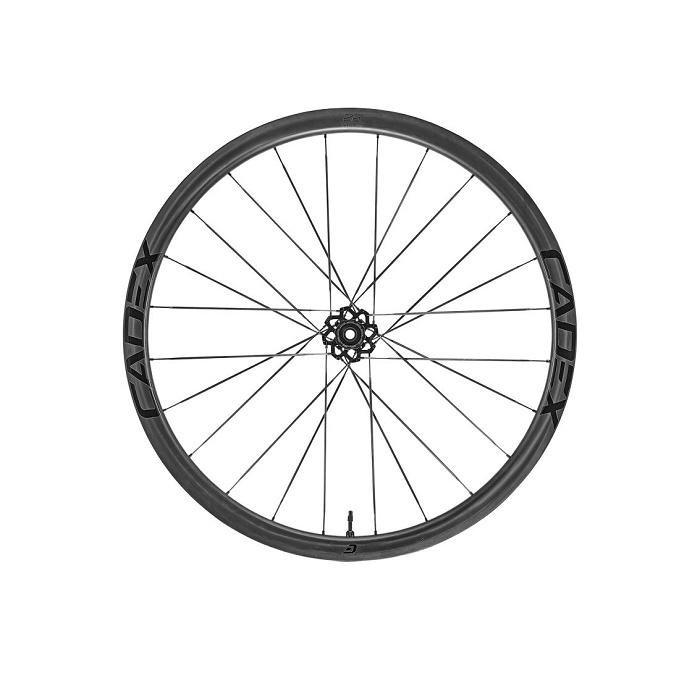

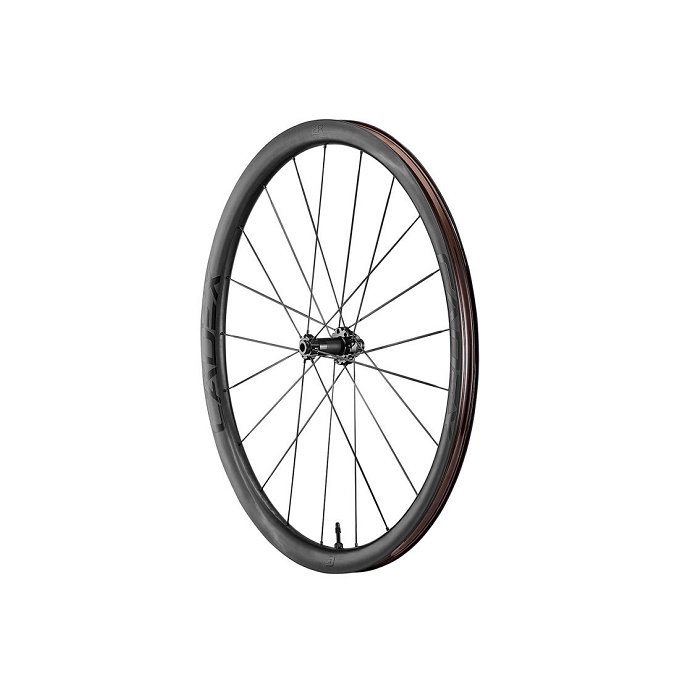

350000271/282 CADEX W/SET AR 35 TUBELESS DISC BRAKE HG

Item Code: WS-003-C

R45,005.00 RRP

Features

Features

CADEX AR 35 DISC TUBELESS

A hookless bead and precision reinforced carbon layup create an exceptionally strong structure with best-in-class weight. A 25mm inner rim width produces a more uniform tire shape and better handling. The innovative 60-tooth ratchet freehub and ultrasmooth ceramic bearings deliver a responsive feel, while high-tensile-strength carbon spokes and Dynamic Balanced Lacing boost lateral stiffness. It all adds up to class-leading speed, efficiency and durability for superior all-road performance. UCI & ITU Approved


Features

  • Hookless rim technology offers XC-level impact resistance by providing
    a more consistent carbon fiber structure at the rim wall. It also creates a
    rounder tire shape for better grip and sidewall support when cornering.
  • Precision reinforced carbon lay-up places carbon fiber only where needed,
    creating a super strong and lightweight rim.
  • 25mm inner width and hookless rim construction offer a shorter, wider
    tire contact patch for reduced power loss and increased impact absorption.
  • A wide inner width supports higher volume 28–45mm road and gravel
    tires, allowing lower tire pressures and more confident handling.
  • High-tensile-strength, ultralight CADEX carbon spokes and precision
    reinforced carbon lay-up combine for class-leading stiffness-to-weight.
  • Custom tuned Dynamic Balanced Lacing (DBL) technology sets spokes at a
    wider bracing angle and evens out tension under pedaling force, producing
    a stiffer, more efficient wheel with outstanding power transfer.
  • CADEX ceramic bearings offer 1.5x smoother action than steel.
  • Lightweight CADEX R2-C60 hub with R-Drive features a DLC 60-tooth
    ratchet driver, durable flat spring and redesigned dust cover for instant
    engagement and long-lasting efficiency.
  • Integrated front hub design reinforces axle support and eliminates play
    by replacing end cap, bearing and bushing interface with an integrated
    axle running the length of the hub.

Specification

Specification

Specifications

Rim Material
Carbon
Rim Type
Hookless Clincher
Tubeless
CADEX Tubeless System (rim tape and valve included)
Suggested Tire Size
700 x 28C – 700 x 45C
Rim Height
35mm
Rim Outer Width
31mm
Rim Inner Width
25mm
ETRTO
622-25
Front Hub
CADEX R2-C60 Hub, Centerlock
Rear Hub
CADEX R2-C60 Hub, 60T Ratchet Driver, Centerlock
Freehub System
R-Drive
Hub Compatibility
SRAM XDR / SHIMANO HG / CAMPAGNOLO N3W
Bearing
CADEX Ceramic Bearings
Front Axle
100x12 Thru Axle
Rear Axle
142x12 Thru Axle
Spokes (Front)
Aero Carbon Spoke
Lacing (Front)
21H
Spokes (Rear)
Aero Carbon Spoke
Lacing (Rear)
24H
Nipple Type
Alloy
Warranty
2 Years
Incident Replacement
5 years (registered original owner)
Weight (Pair)
1270g
