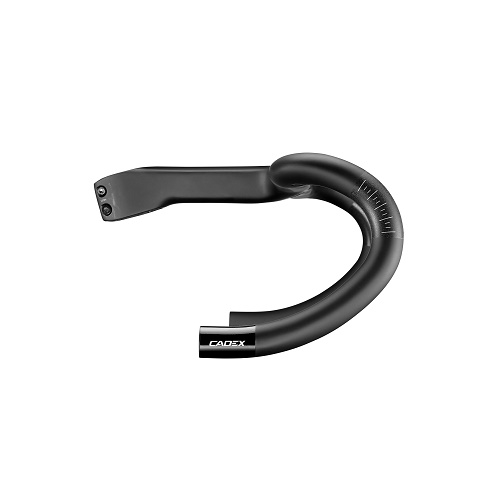

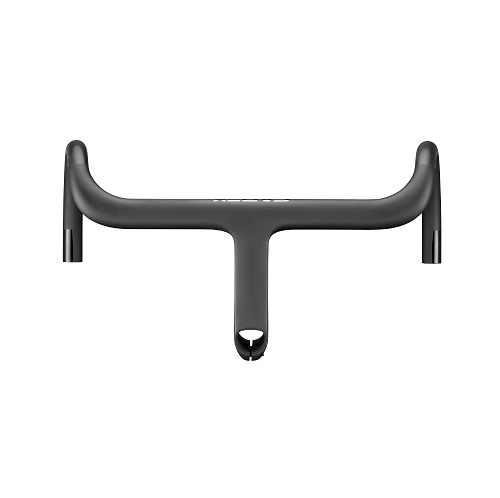

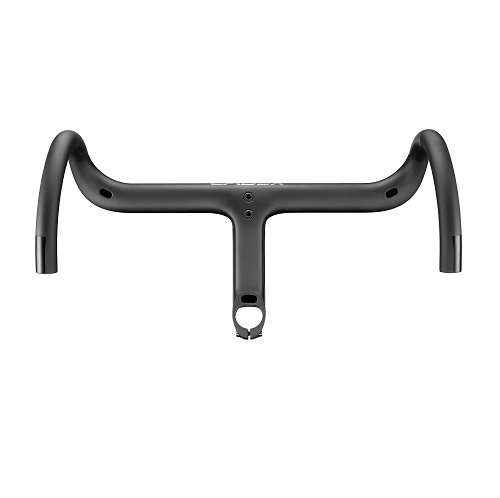

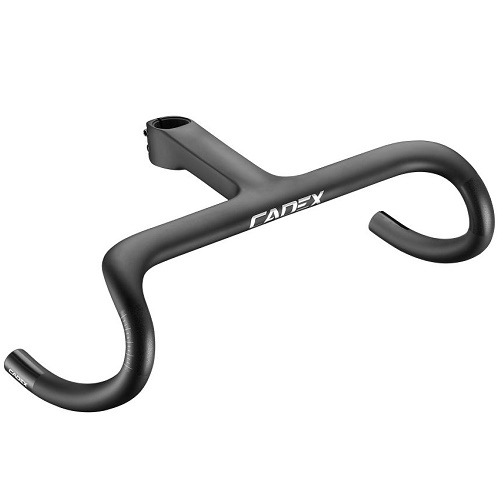

180000433 CADEX H/BAR RACE INTEGRATED ROAD 400/370X100

Item Code: HB-433-CC

- TO BE ANNOUNCED

Features

Features

Features

  • T800 and T1100 carbon fiber layup offers ultralight weight without compromising on strength and stiffness.
  • One-piece, no-bond manufacturing on the drops, hoods and tops utilizes CADEX precision layup technique to eliminate the added weight and flex found in traditionally bonded bars.
  • 72mm reach provides a swift transition between the tops and hoods for added control when switching hand positions.
  • 125mm shallow drops for quick and easy movement from the hoods to the drops.
  • 11-degree flare for total control when sprinting, attacking and descending.
  • Narrower position at the hoods combines with wider drops for watt-saving efficiency and control.

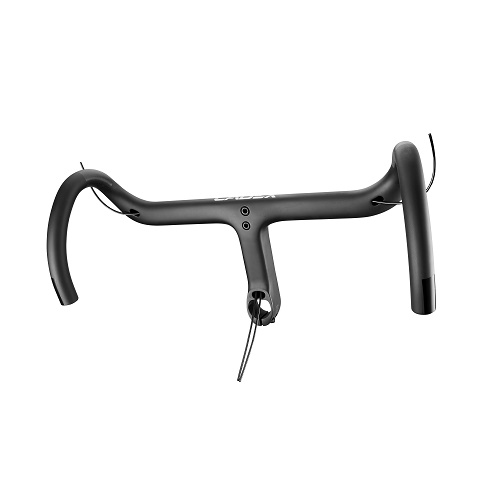

  • Integrated bar-and-stem construction and internal cable routing for improved aerodynamic performance.
  • Out-front computer mount included.
  • Compatible with OverDrive Aero D Shaped steerer tubes, 1 1/8" compatible coming soon.

Specification

Specification

Specifications


Material: Carbon

Stem Angle: -10 degrees

Stem Clamp: 1 1/8”, OverDrive Aero D Shaped (depending on model)

Stem Length: 80 / 90 / 100 / 110 / 120 / 130 / 140mm

Width (Drop to Drop): 360 / 380 / 400 / 420 / 440mm

Width (Hood to Hood): 340 / 360 / 370 / 390 / 410mm

Drop: 125mm (120mm for 360 / 380mm bar)

Reach: 72mm (68mm for 360 / 380mm bar)

Flare: 11 degrees for 400 / 420/ 440mm bar 8 degrees for 360/380 bar

Weight: 256g (420mm x 100mm bar)

Included Accessories: CADEX out-front computer mount, OverDrive Aero spacer
