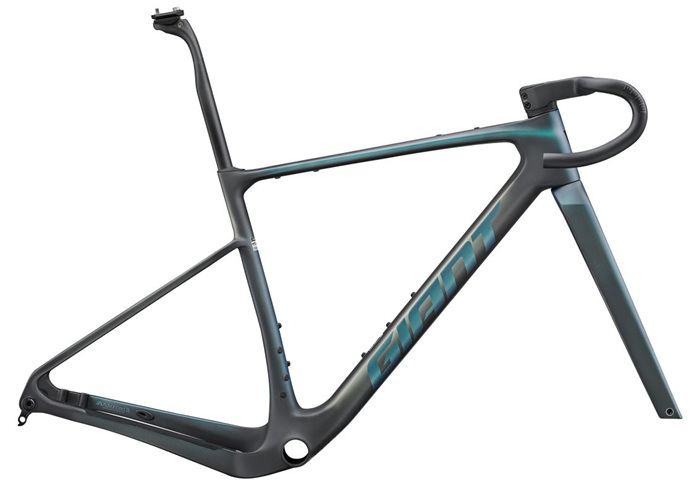

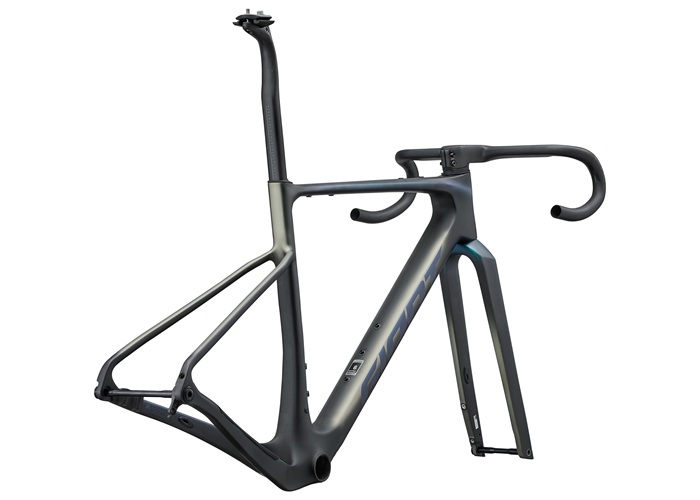

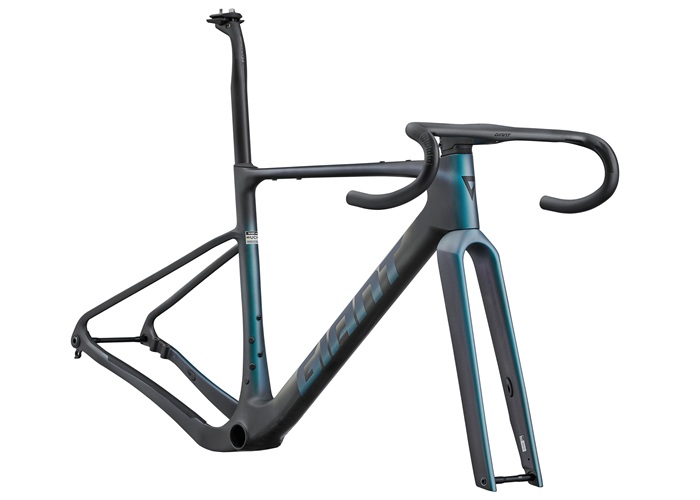

REVOLT ADV SL FRAMESET 2027

R66,655.00 RRP

Features

Features



Key Performance Factors

ULTRALIGHT EFFICIENCY

The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro.

AERO SPEED OVER DISTANCE

Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Superspeed Teal
  • Frame
    Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
  • Fork
    Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
  • Handlebar
    Giant Contact SLR XR Integrated XS:70x420mm, S:80x420mm, M:90x440mm, M/L:100x440mm, L:100x440mm, XL:110x460mm
  • Stem
    Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
  • Seatpost
    Giant Contact SLR XR D-Fuse, composite, 20mm offset
  • Extras
    Computer mount, chain guide
  • Max Tyre Clearance
    700x53mm
  • Max Chainring Size
    54t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

  • XS
      155 cm to 166 cm
  • S
      159 cm to 171 cm
  • M
      169 cm to 181 cm
  • ML
      174 cm to 186 cm
  • L
      179 cm to 191 cm
  • XL
      189 cm to 200 cm
bike diagram with measurements referenced in table that follows



  XS S M ML L XL
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle (degrees) 75.0° 74.5° 74.5° 74.0° 74.0° 74.0°
C Top Tube Length (mm) 530 540 550 565 580 590
D Head Tube Length (mm) 90 100 120 135 155 180
E Head Tube Angle (degrees) 70.5° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 74 71 67 67 67
H Wheelbase (mm) 1026 1027 1033 1039 1055 1066
I Chain Stay Length (mm) 433 433 433 433 433 433
J Bottom Bracket Drop (mm) 80 80 80 80 80 80
K Stack (mm) 525 536 557 573 592 616
L Reach (mm) 389 391 395 401 410 413
M Stand Over Height (mm) 726 743 762 779 798 818
N Handlebar Width (mm) 380 380 400 400 420 420
O Stem Length (mm) 70 80 90 100 100 110
P Crank Length (mm) 165 165 170 170 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C 700C
