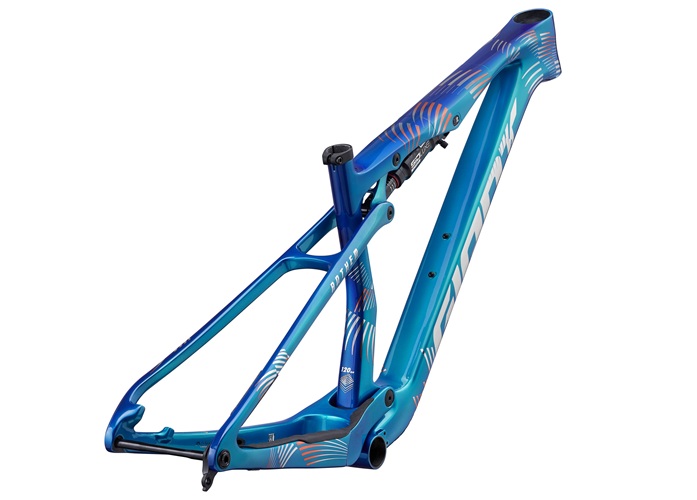

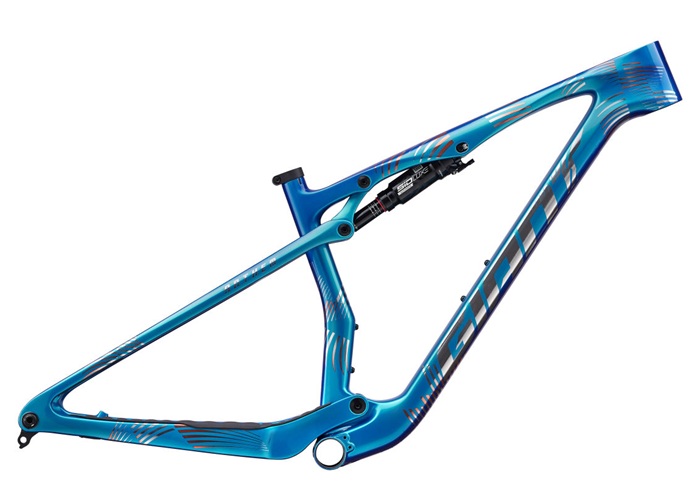

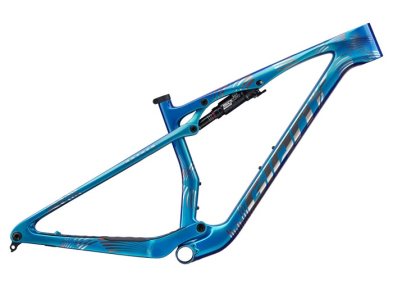

ANTHEM ADV SL FRAMESET

R73,520.00 RRP

Size *: S M L XL

Qty:

Features

Developed to help Giant pro Alan Hatherly win the 2025 Elite Men’s XCO World Championship, this superlight XC composite flyer is engineered with a semi-integrated 120mm FlexPoint Pro rear suspension system and a flip chip to adjust geometry for any racecourse or XC terrain.

Key Performance Factors

TOTAL CONTROL

The new FlexPoint Pro suspension delivers 120mm of smooth, active rear travel to help you fly down rough descents and power up technical climbs. A flip chip lets you fine tune handling for all types of XC terrain.

LOW-LATENCY SPEED CONCEPT

A fully reengineered composite frameset is 89 grams lighter than it predecessor, with 7.95 percent greater stiffness-to-weight ratio (efficiency) to help you power up climbs and make every watt count. The integrated handlebar/stem unit is designed for maximum efficiency and comfort. The rear shock is repositioned and semi-integrated with the top tube, shaving weight and creating space for a second water bottle cage.

SYSTEM INTEGRATION

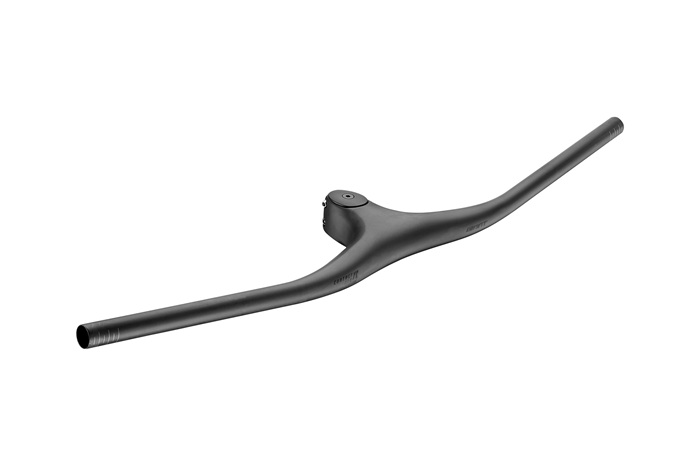

A new one-piece integrated handlebar/stem unit adds compliance to reduce shocks and vibrations, improving control and hand comfort. It’s available in two models—the Contact SLR XC Integrated composite and Contact SL XC Integrated alloy. Both feature the same seamless cable routing and versatile sizing with a 780mm standard width and stem lengths ranging from 50-90mm.

Specification

Sizes

S, M, L, XL
Colours

Electrical Storm
Frame

Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle
Fork

N/A
Shock

RockShox SidLuxe Ultimate, RL damper, Solo Air, 210/50, TwistLoc Ultimate
Handlebar

Giant Integrated XC, composite, 780mm, 9-degree upsweep
Stem

Giant Integrated XC Carbon S:60mm, M:70mm, L:70mm, XL:80mm
Seatpost

N/A
Saddle

N/A
Pedals

N/A
Extras

2.4" max tire size, 34t max chainring size, MRP 1x CS chain guide
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S

163 cm5’4” 172 cm5’8”
M

171 cm5’7” 180 cm5’11”
L

179 cm5’10” 188 cm6’2”
XL

187 cm6’2” 198 cm6’6”

bike diagram with measurements referenced in table that follows

	S	M	L	XL
	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH
A Seat Tube Length (mm) (inch)	40015.7	42016.5	46518.3	49519.5
B Seat Tube Angle (degrees)	75.5° \| 76.0°	75.5° \| 76.0°	75.5° \| 76.0°	75.5° \| 76.0°
C Top Tube Length (mm) (inch)	57622.7 \| 57422.6	60223.7 \| 60023.6	62424.6 \| 62324.5	65125.6 \| 65025.6
D Head Tube Length (mm) (inch)	903.5	953.7	1054.1	1154.5
E Head Tube Angle (degrees)	66.5° \| 67.0°	66.5° \| 67.0°	66.5° \| 67.0°	66.5° \| 67.0°
F Fork Rake (mm) (inch)	441.7	441.7	441.7	441.7
G Trail (mm) (inch)	1164.6 \| 112.24.4	115.94.5 \| 112.24.4	115.94.5 \| 112.24.4	115.84.5 \| 112.24.4
H Wheelbase (mm) (inch)	114144.9 \| 114044.9	116846 \| 116745.9	119246.9 \| 119146.9	122148.1 \| 122048
I Chain Stay Length (mm) (inch)	43717.2 \| 43517.1	43717.2 \| 43517.1	43717.2 \| 43517.1	43717.2 \| 43517.1
J Bottom Bracket Drop (mm) (inch)	512 \| 451.8	512 \| 451.8	522 \| 451.8	522 \| 451.8
K Stack (mm) (inch)	60223.7 \| 59923.6	60723.9 \| 60323.7	61624.3 \| 61224.1	62624.6 \| 62224.5
L Reach (mm) (inch)	42016.5 \| 42516.7	44517.5 \| 45017.7	46518.3 \| 47018.5	49019.3 \| 49519.5
M Stand Over Height (mm) (inch)	76930.3 \| 77530.5	76430.1 \| 77130.4	75829.8 \| 76330	75129.6 \| 75829.8
N Handlebar Width (mm) (inch)	78030.7	78030.7	78030.7	78030.7
O Stem Length (mm) (inch)	602.4	702.8	702.8	803.1
P Crank Length (mm) (inch)	1706.7	1706.7	1756.9	1756.9

	S	M	L	XL
	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH	LOW \| HIGH
A Seat Tube Length (mm) (inch)	40015.7	42016.5	46518.3	49519.5
B Seat Tube Angle (degrees)	75.5° \| 76.0°	75.5° \| 76.0°	75.5° \| 76.0°	75.5° \| 76.0°
C Top Tube Length (mm) (inch)	57622.7 \| 57422.6	60223.7 \| 60023.6	62424.6 \| 62324.5	65125.6 \| 65025.6
D Head Tube Length (mm) (inch)	903.5	953.7	1054.1	1154.5
E Head Tube Angle (degrees)	66.5° \| 67.0°	66.5° \| 67.0°	66.5° \| 67.0°	66.5° \| 67.0°
F Fork Rake (mm) (inch)	441.7	441.7	441.7	441.7
G Trail (mm) (inch)	1164.6 \| 112.24.4	115.94.5 \| 112.24.4	115.94.5 \| 112.24.4	115.84.5 \| 112.24.4
H Wheelbase (mm) (inch)	114144.9 \| 114044.9	116846 \| 116745.9	119246.9 \| 119146.9	122148.1 \| 122048
I Chain Stay Length (mm) (inch)	43717.2 \| 43517.1	43717.2 \| 43517.1	43717.2 \| 43517.1	43717.2 \| 43517.1
J Bottom Bracket Drop (mm) (inch)	512 \| 451.8	512 \| 451.8	522 \| 451.8	522 \| 451.8
K Stack (mm) (inch)	60223.7 \| 59923.6	60723.9 \| 60323.7	61624.3 \| 61224.1	62624.6 \| 62224.5
L Reach (mm) (inch)	42016.5 \| 42516.7	44517.5 \| 45017.7	46518.3 \| 47018.5	49019.3 \| 49519.5
M Stand Over Height (mm) (inch)	76930.3 \| 77530.5	76430.1 \| 77130.4	75829.8 \| 76330	75129.6 \| 75829.8
N Handlebar Width (mm) (inch)	78030.7	78030.7	78030.7	78030.7
O Stem Length (mm) (inch)	602.4	702.8	702.8	803.1
P Crank Length (mm) (inch)	1706.7	1706.7	1756.9	1756.9

ANTHEM ADV SL FRAMESET

Features

Features

Developed to help Giant pro Alan Hatherly win the 2025 Elite Men’s XCO World Championship, this superlight XC composite flyer is engineered with a semi-integrated 120mm FlexPoint Pro rear suspension system and a flip chip to adjust geometry for any racecourse or XC terrain.

Key Performance Factors

TOTAL CONTROL

LOW-LATENCY SPEED CONCEPT

SYSTEM INTEGRATION

Specification

Specification

Geometry

Geometry

Sizing Guide and Geometry
