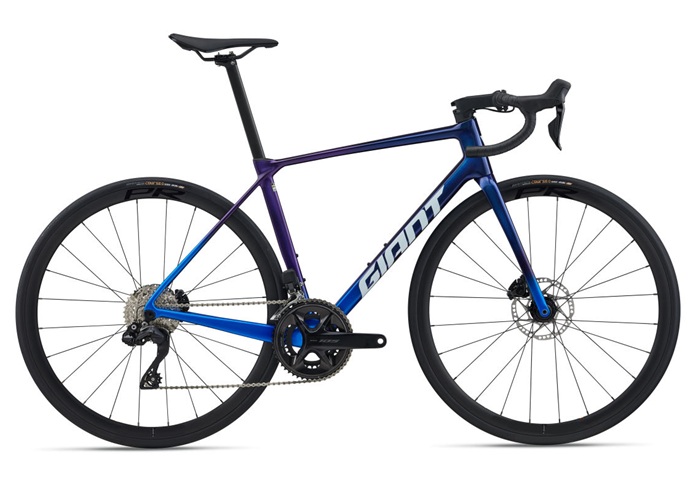

TCR ADV 1 2026

R72,990.00 RRP

Features

Features

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.

Key Performance Factors

Class-leading efficiency

A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tyre pressures for increased grip and a reduced risk of punctures.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Purple Haze
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
  • Grips
    Stratus Lite 2.0
  • Stem
    Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    Shimano 105 Di2
  • Front Derailleur
    Shimano 105 Di2 FD-7150
  • Rear Derailleur
    Shimano 105 Di2 RD-7150
  • Brakes
    Shimano 105 Di2 hydraulic, Shimano SM-RT64 rotors [F]160mm, [R]140mm
  • Brake Levers
    Shimano 105 Di2
  • Cassette
    Shimano 105, 12-speed, 11x34
  • Chain
    KMC X12L-1
  • Crankset
    Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-R1, [F]30mm, [R]30mm
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Stainless
  • Tyres
    Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
  • Extras
    Tubeless prepared, 33mm max tyre size
  • Max Tyre Clearance
    33mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.



  • XS
      157 cm to 169 cm
  • S
      165 cm to 175 cm
  • M
      171 cm to 181 cm
  • ML
      177 cm to 187 cm
  • L
      183 cm to 193 cm
  • XL
      189 cm to 199 cm
bike diagram with measurements referenced in table that follows



  XS S M ML L XL
A Seat Tube Length (mm) 425 445 470 500 530 560
B Seat Tube Angle (degrees) 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle (degrees) 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
G Trail (mm) 72.1 64 59.2 59.2 59.2 59.2
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 70 70 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 719 734 752 768 786 803
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 165 165 170 170 172.5 172.5
