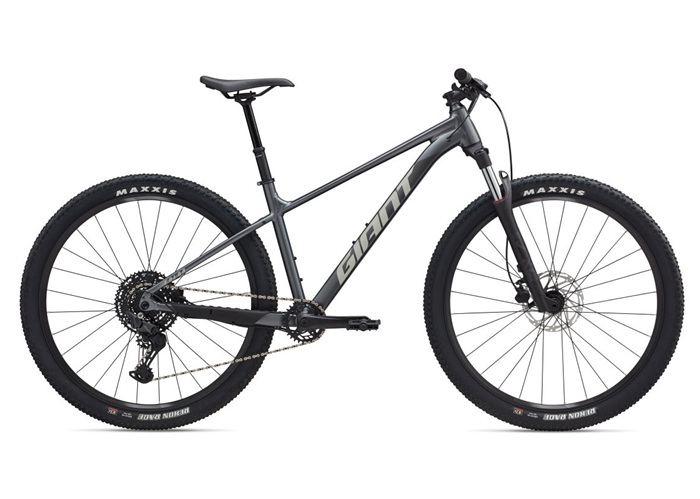

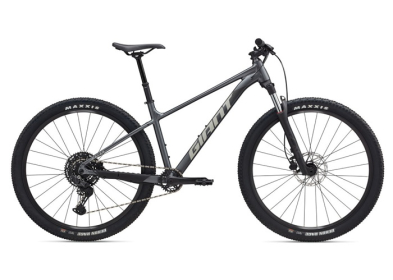

TALON 29ER 1 2026

R17,990.00 RRP

Features

Features

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Key Performance Factors

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Specification

Specification

Specs
  • Sizes
    27.5: XS,S, 29: S,M,L,XL,XXL
  • Colors
    Charcoal
  • Frame
    ALUXX-grade aluminum, disc
  • Fork
    SXC32-3 RL, coil spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
  • Shock
    N/A
  • Handlebar
    Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)
  • Grips
    Giant Sole-O
  • Stem
    Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)
  • Seatpost
    Giant Contact Switch Core, 30.9 XS: 100x350mm (27.5) S: 100x350mm (27.5) / 100x350mm (29) M: 120x400mm (29) L: 120x400mm (29) XL: 120x400mm (29) XXL: 120x400mm (29)
  • Saddle
    Giant ErgoContact Trail
  • Pedals
    MTB caged
  • Shifters
    Shimano CUES SL-6000, 1x10
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano CUES RD-U6000, clutch
  • Brakes
    Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
  • Brake Levers
    Tektro HDC M275
  • Cassette
    Shimano CUES, CS-LG300, 11x48
  • Chain
    KMC X-11
  • Crankset
    ProWheel Charm, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)
  • Bottom Bracket
    cartridge
  • Rims
    Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
  • Hubs
    [F] Giant Tracker hub, sealed bearing, 15x110 thru axle. [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive
  • Spokes
    stainless, 14g
  • Tires
    Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
  • Extras
    2.4" max tire size
  • Weight
    14.59 kg (32 lbs 03 oz) - Size (L)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.



  • XS (27.5")
      155 cm to 166 cm
  • S (29")
      163 cm to 172 cm
  • M (29")
      169 cm to 179 cm
  • L (29")
      176 cm to 186 cm
  • XL (29")
      183 cm to 193 cm
bike diagram with measurements referenced in table that follows
  XS (27.5") S (29") M (29") L (29") XL (29")
A Seat Tube Length (mm) 345 380 420 450 480
A1 Seat Post Insertion Depth (mm) 306 340 200 237 292
B Seat Tube Angle (degrees) 74.0° 74.5° 74.5° 74.5° 74.5°
C Top Tube Length (mm) 542 581 604 629 653
D Head Tube Length (mm) 90 95 105 125 140
E Head Tube Angle (degrees) 67.0° 67.5° 67.5° 67.5° 67.5°
F Fork Rake (mm) 44 44 44 44 44
G Trail (mm) 105.2 108.9 108.9 108.9 108.9
H Wheelbase (mm) 1084 1139 1164 1191 1217
I Chain Stay Length (mm) 440 455 455 455 455
J Bottom Bracket Drop (mm) 45 55 55 55 55
K Stack (mm) 548 597 606 625 639
L Reach (mm) 385 415 436 456 476
M Stand Over Height (mm) 684 715 709 709 710
N Handlebar Width (mm) 690 690 690 690 690
O Stem Length (mm) 40 50 60 70 80
P Crank Length (mm) 170 170 170 170 175
Q Wheel Size 27.5" 29" 29" 29" 29"
