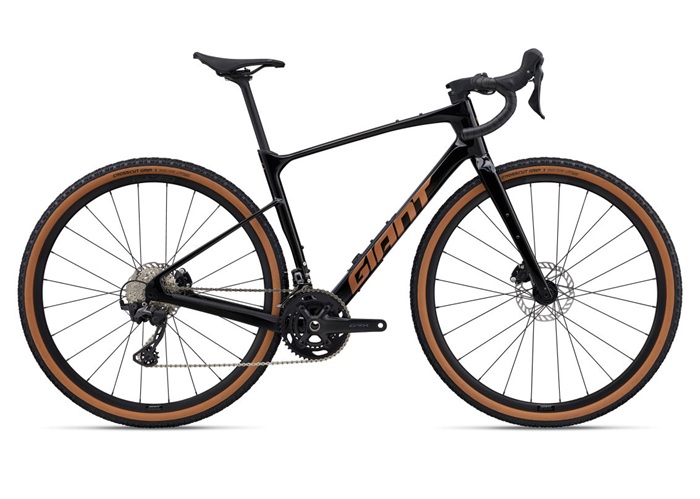

REVOLT ADV 2 2026

R59,990.00 RRP

Features

Features

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Key Performance Factors

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Carbon
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Grit
  • Shifters
    Shimano GRX RX-610, 2x12
  • Front Derailleur
    Shimano GRX RX-820
  • Rear Derailleur
    Shimano GRX RX-820
  • Brakes
    Shimano BR-RX410hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-610 hydraulic
  • Cassette
    Shimano CS-HG710, 12-speed, 11x36
  • Chain
    KMC X12L-1
  • Crankset
    Shimano FC-RX610-2, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-X2 , alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Giant Crosscut Grip, 700x45c, tubeless
  • Extras
    tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
  • Max Tire Clearance
    53mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows



  XS S M ML L XL
  SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle (degrees) 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle (degrees) 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
N Handlebar Width (mm) 420 420 440 440 460 460
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
