STANCE

R39,990.00 RRP

Features

Features

Nothing beats that feeling of being one with the trail. Stance helps you tap into it, delivering smooth control with a new aluminum frameset and 130mm of FlexPoint rear suspension featuring a new semi-integrated design. Paired with a 140mm fork and trail-ready features, including a dropper post, it’s everything you need to reach the next level.

Key Performance Factors

TRAIL-FRIENDLY CONTROL

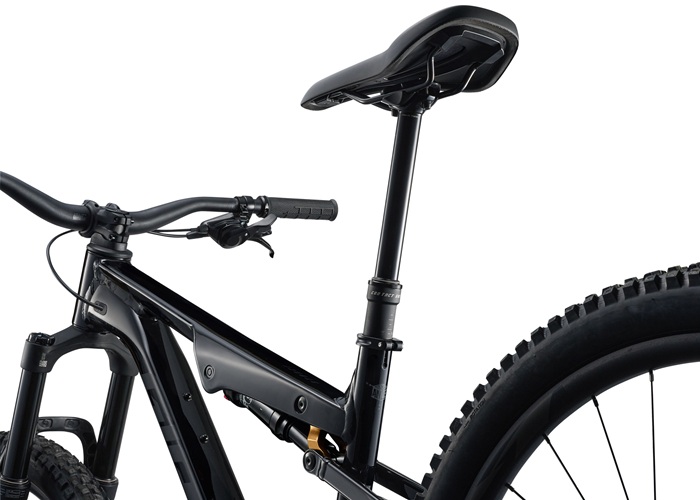

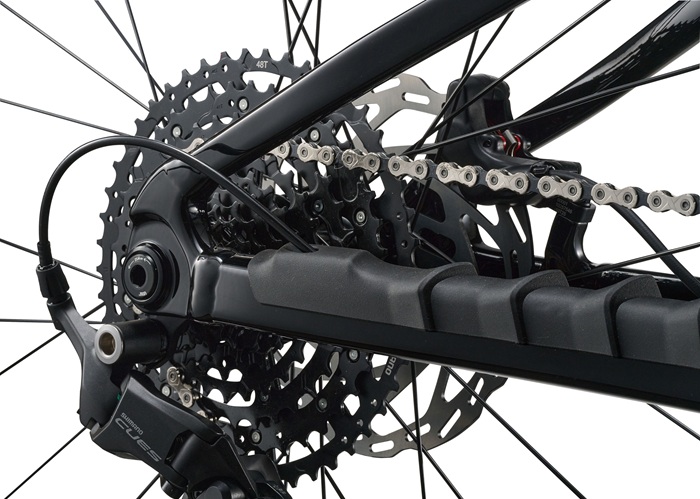

Refined trail geometry with a slacker head tube and higher stack creates a stable, confident ride position. The new Contact Switch AT dropper post and long-post compatibility (up to 200mm) gives you room to move on descents. A wide-range 1X drivetrain, powerful 4-piston brakes, and tubeless tires deliver simple shifting, precise speed control and planted traction—so you don’t just ride the trail, you master it.

TRAIL-TUNED SUSPENSION

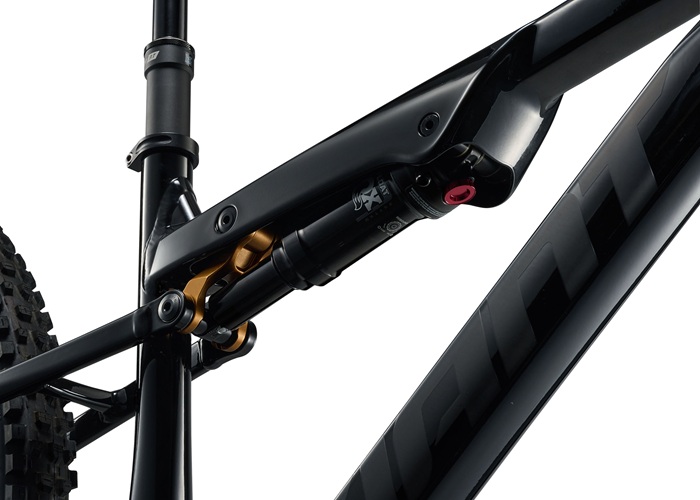

Re-engineered FlexPoint rear suspension with a Fox Rhythm TR shock delivers active, consistent performance through 130mm of travel. The single-pivot system boasts the lowest rear-triangle deformation in its class, while new kinematics with tailored shock spring curve deliver a more linear wheel path. The result is a smooth, predictable feel with unbeatable traction and mid-stroke support. Up front, the dual-air Giant STL 34 suspension fork smooths out rocks and roots. And our Unified Suspension Setup makes it easy to dial-in the settings.

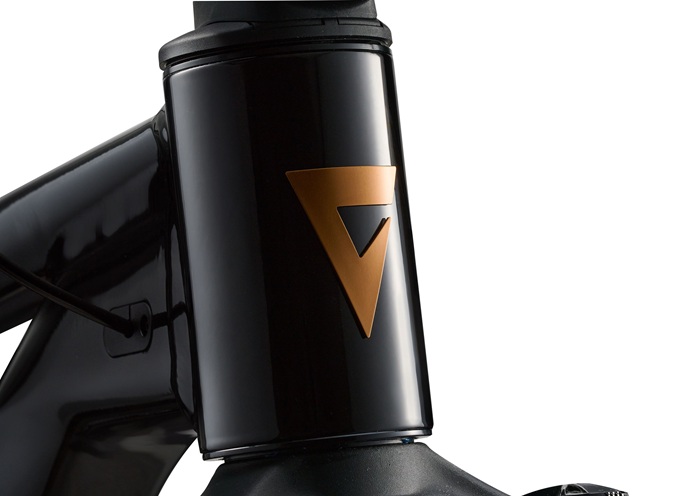

INTEGRATED CHASSIS

A new hydroformed ALUXX aluminum chassis is engineered for strength, stiffness, and low weight. Seamless shock integration enhances frame stiffness and delivers amore connected ride feel. A smooth cockpit-to-frame transition with integrated spacers keeps the front end clean, while flush cable guides help ensure quiet performance. Convertible internal/external routing adds adaptability. The result is a sleek, precise, trail-ready frame that rides as sharp as it looks

Specification

Specification

Specs
  • Sizes
    S, M, L, XL
  • Colors
    Black
  • Frame
    ALUXX-grade aluminum, 130mm FlexPoint suspension, 12x148mm thru-axle, UDH interface, external storage solution
  • Fork
    Giant STL 34 dual air, 140mm, 15x110, thru-axle
  • Shock
    Fox Rhythm, rebound, 210x52.5
  • Handlebar
    Giant Contact TR35, 35mm XS:20mm rise/760mm, S:20mm ride/760mm, M:35mm rise/760mm, L:35mm rise 800mm, XL:35mm rise 800mm
  • Grips
    Giant Tactal, lock on
  • Stem
    Giant Contact SL 35 XS: 40mm, S:40mm, M:40mm, L:40mm, XL:40mm
  • Seatpost
    Giant Contact Switch AT dropper, remote XS: 110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
  • Saddle
    Giant Contact Ergo Trail
  • Shifters
    Shimano CUES SL-6000, 1x10
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano CUES RD-U6000, Shadow +
  • Brakes
    Tektro HD-M5141, hydraulic, TR-54, 6-bolt rotors [F]180mm, [R]180mm
  • Brake Levers
    Tektro HD-M5141
  • Cassette
    Shimano CUES, CS-LG300, 11x48
  • Chain
    KMC X-11
  • Crankset
    Shimano CUES FC-U6000, 30t XS: 165mm, S:165mm, M:165mm, L:165mm, XL:165mm
  • Bottom Bracket
    Shimano, threaded
  • Rims
    Giant AM30 alloy rim
  • Hubs
    [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 6-bolt, HG driver body
  • Spokes
    stainless, 28, J-bend
  • Tires
    [F] Maxxis Dissector 29x2.4, Dual, EXO, TR [R] Maxxis Dissector 29x2.4, Dual, EXO, TR, tubeless
  • Extras
    tubeless prepared, max tire size 2.5", max chainring size 32t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.


  • S
      163 cm to 172 cm
  • M
      171 cm to 180 cm
  • L
      179 cm to 188 cm
  • XL
      187 cm to 198 cm
bike diagram with measurements referenced in table that follows





  S M L XL
A Seat Tube Length (mm) 400 425 450 475
A1 Seat Post Insertion Depth (mm) 270 290 320 390
B Seat Tube Angle (degrees) 76.5° 76.5° 76.5° 76.5°
C Top Tube Length (mm) 568 602 628 661
D Head Tube Length (mm) 95 100 115 120
E Head Tube Angle (degrees) 65.0° 65.0° 65.0° 65.0°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 129 129 129 129
H Wheelbase (mm) 1176 1210 1239 1274
I Chain Stay Length (mm) 442 442 442 442
J Bottom Bracket Drop (mm) 40 40 40 40
K Stack (mm) 610 615 628 633
L Reach (mm) 422 454 477 509
M Stand Over Height (mm) 747 747 747 747
N Handlebar Width (mm) 760 760 780 780
O Stem Length (mm) 40 40 40 40
P Crank Length (mm) 165 165 165 165
Q Wheel Size 29" 29" 29" 29"
