REVOLT ADV SL 1 2027

R137,315.00 RRP

Features

Features

The lightest, fastest gravel race bike ever built by Giant. Engineered as a system to deliver a competitive edge over long, demanding gravel efforts, the new Revolt Advanced SL combines aero efficiency with smooth, precise handling, helping you hold speed when others fade.

Key Performance Factors

ULTRALIGHT EFFICIENCY

The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro, while a new Contact SLR XR Integrated Handlebar, lighter WheelSystem, and CADEX GXR 45mm tires add up to a total system weight savings of 288g*. The lighter weight and wider tires result in more dynamic handling, faster acceleration, and greater climbing efficiency.

AERO SPEED OVER DISTANCE

Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Combined with new WheelSystems and tires designed as a single aerodynamic unit, the system delivers 18.99 watts of total resistance reduction versus the previous Revolt Advanced Pro. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Specification

Specification

Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Tempest Purple
  • Frame
    Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout

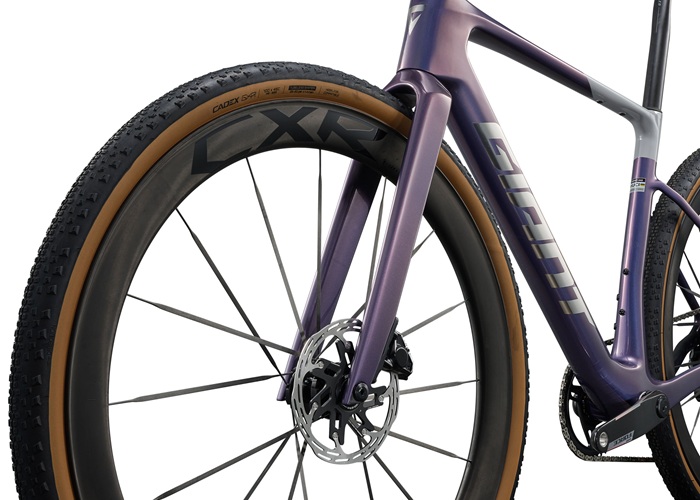

  • Fork
    Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc

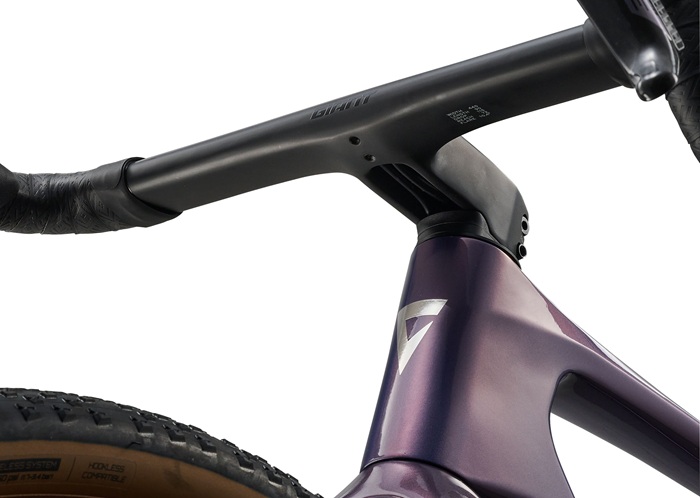

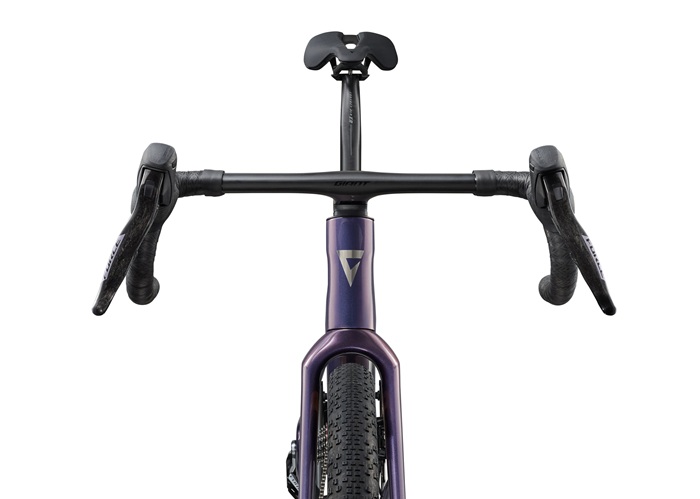

  • Handlebar
    Giant Contact SLR XR Integrated XS:420/380mm, S:420/380mm, M:440/400mm, M/L:440/400mm, L:440/420mm, XL:460/420mm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
  • Seatpost
    Giant Contact SLR XR D-Fuse, composite, 20mm offset
  • Saddle
    Giant Grit SLR
  • Shifters
    SRAM Force XPLR AXS E1, 1x13
  • Rear Derailleur
    SRAM Force XPLR AXS E1
  • Brakes
    SRAM Force AXS E1 hydraulic, SRAM PaceLine X rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM Force E1 hydraulic
  • Cassette
    SRAM Force E1, 13-speed, 10x46
  • Chain
    SRAM Force E1

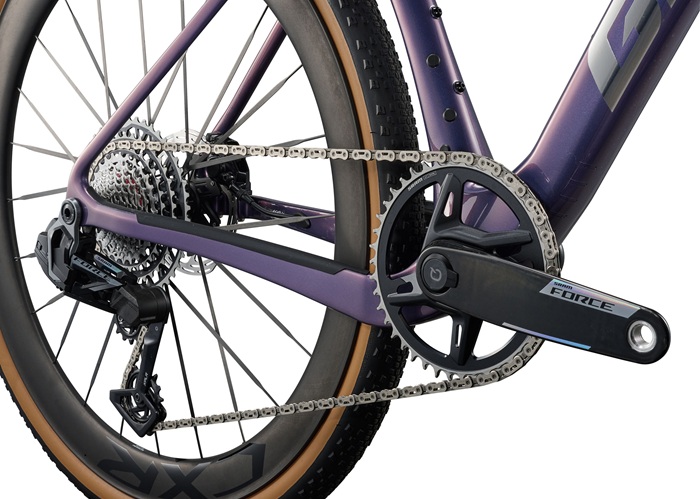

  • Crankset
    SRAM Force XPLR AXS with power meter, 42t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant CXR 0 WheelSystem, hookless, carbon [F] 50mm, [R] 50mm
  • Hubs
    [F] Giant Low Friction Aero Hub, Center Lock [R] Giant Low Friction Aero Hub, 60-tooth ratchet driver, Center Lock
  • Spokes
    Aero Bladed Carbon Spoke
  • Tires
    CADEX GXR, 700x45c, tubeless
  • Extras
    tubeless prepared, computer mount, chain guide
  • Max Tire Clearance
    700x53mm
  • Max Chainring Size
    54t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.




  • XS
      155 cm to 166 cm
  • S
      159 cm to 171 cm
  • M
      169 cm to 181 cm
  • ML
      174 cm to 186 cm
  • L
      179 cm to 191 cm
  • XL
      189 cm to 200 cm
bike diagram with measurements referenced in table that follows



  XS S M ML L XL
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle (degrees) 75.0° 74.5° 74.5° 74.0° 74.0° 74.0°
C Top Tube Length (mm) 530 540 550 565 580 590
D Head Tube Length (mm) 90 100 120 135 155 180
E Head Tube Angle (degrees) 70.5° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 74 71 67 67 67
H Wheelbase (mm) 1026 1027 1033 1039 1055 1066
I Chain Stay Length (mm) 433 433 433 433 433 433
J Bottom Bracket Drop (mm) 80 80 80 80 80 80
K Stack (mm) 525 536 557 573 592 616
L Reach (mm) 389 391 395 401 410 413
M Stand Over Height (mm) 726 743 762 779 798 818
N Handlebar Width (mm) 380 380 400 400 420 420
O Stem Length (mm) 70 80 90 100 100 110
P Crank Length (mm) 165 165 170 170 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C 700C
