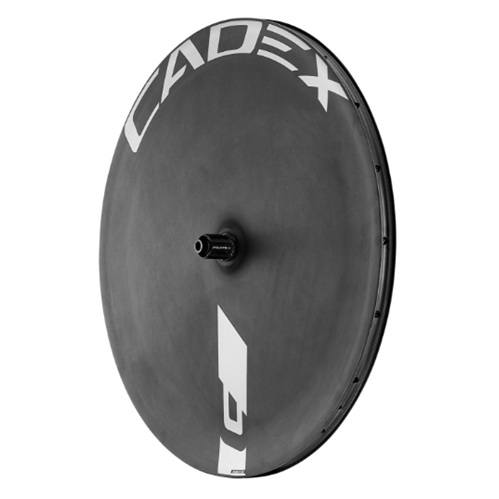

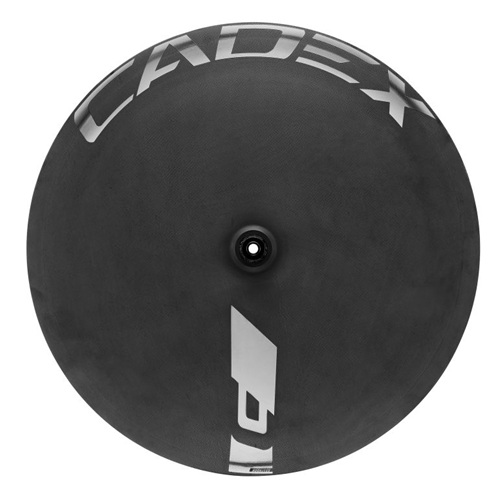

CADEX WHEEL REAR TT DISC DB HG

Item Code: WHRC-00419-GZC5

R66,690.00 RRP

Features

Features

Features

  • Integrated Max structure, featuring CADEX Aero Carbon spokes joined to a thin carbon hub flange and concealed beneath ultralight 1K carbon weave disc covers, enhances both lateral and torsional stiffness, while keeping the total weight to just 1000g.
  • High-tensile-strength CADEX Aero Carbon spokes with independent internal
    spoke tension adjustment reduce lateral flex, enabling more efficient acceleration and climbing.
  • Dynamic Balanced Lacing technology positions integrated spokes at a wider bracing angle, stabilizing tension under pedaling force and increasing efficiency.
  • 22.4mm inner rim width, combined with a continuous carbon fiber structure, delivers superior grip, added sidewall support, and exceptional cornering stability.
  • 3mm rim wall width provides better tire support during cornering, improves air transition from the tire sidewall to the wheel for optimized aerodynamics, and increases impact resistance.
  • Wider external dimensions of the rim shape provide maximum aerodynamic advantage in variable wind conditions.
  • Precision-machined CADEX R3-C40 aero hub reduces bearing load, while CADEX ceramic bearings generate 1.5 times less friction than steel bearings for improved efficiency.

Specification

Specification

Specifications


Rim Material: Ultralight 1K Full Composite

Rim Outer Width: 28.4mm

Rim Inner Width: 22.4mm

Hub: CADEX R3-C40, Ratchet Driver, Centerlock One-piece integrated hub and spokes

Hub Compatibility: SRAM XDR / Shimano HG / Campagnolo

Bearing: CADEX Ceramic

Axle: 142x12 Thru Axle

Spokes: Hidden Reinforced CADEX Aero Carbon Spoke

Lacing: DBL, 20H

Nipple: Hidden Integrated Alloy Nipple

Weight: w/o valve 1000g (with Shimano freehub)

Warranty Lifetime: (registered original owner only)

Incident Replacement: 5 years (registered original owner only)
