PIQUE ADV SL 3 2026

R74,990.00 RRP

Features

Features

Built for racers obsessed with speed, performance, and control, the new Pique Advanced SL is engineered to deliver. Components are designed to work seamlessly together as one optimized system. The 120mm single-pivot FlexPoint Pro rear suspension is now semi-integrated with your top tube for a lighter, more efficient ride. And the flip chip lets you adjust your geometry for the course ahead and the fire inside.

Key Performance Factors

Built for speed

The new Advanced SL-grade composite frame is the lightest we’ve ever designed, achieving exceptional stiffness-to-weight so every pedal stroke returns power almost effortlessly, for swift and decisive acceleration and climbing. Tuned specifically for XC racing, the reengineered FlexPoint Pro Suspension is lighter, more compact, and more responsive.

Built for performance

The Pique Advanced SL is designed as a single optimized system. The new one-piece handlebar-stem with fully integrated cable routing keeps things light, clean, and responsive. Giant WheelSystems with Wide Guard rims give you robust sidewalls so you can run lower tire pressure for extra grip and puncture protection.

Built for results

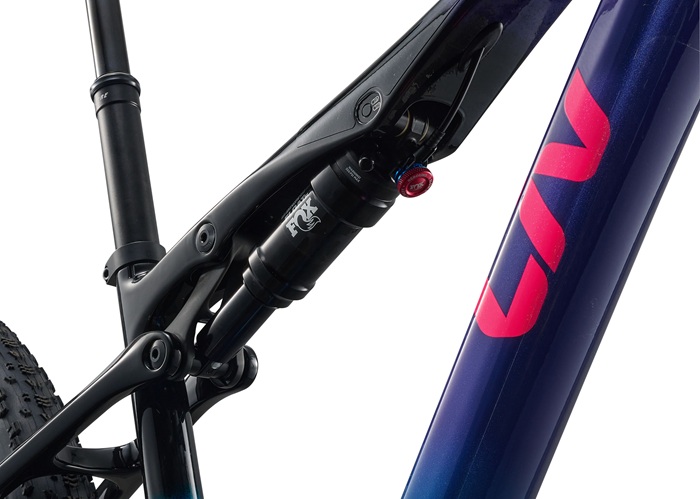

The updated FlexPoint Pro suspension system offers 120mm of smooth, active rear-wheel travel, paired with a 120mm fork, giving you the control and stability you need when things get technical. The two-position flip chip lets you adjust your geometry for the perfect handling for the course. And the suspension lock-out provides hardtail-like efficiency when you’re climbing a hill or a podium.

Specification

Specification

Specs
  • Sizes
    XS, S, M, L
  • Colors
    Deep Cove/Sea Sparkle
  • Frame
    Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle
  • Fork
    Fox 34 SL Performance, 120mm, GRIP damper, Boost 15x110, 44mm offset, remote lockout
  • Shock
    Fox Float SL Performance Elite, 3-position damper, 210/50, 3-position lockout
  • Handlebar
    Giant Integrated XC, alloy, 780mm, 9-degree upsweep
  • Grips
    Liv XC Pro, silicone
  • Stem
    Giant Integrated XC, alloy XS: 60, S:60mm, M:70mm, L:70mm
  • Seatpost
    Giant Core dropper, remote XS: 100mm travel / 30.9 x 395mm S: 100mm travel / 30.9 x 395mm M: 120mm travel / 30.9 x 395mm
  • Saddle
    Liv Grit
  • Pedals
    N/A
  • Shifters
    Shimano Deore mechanical, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore
  • Brakes
    Shimano BR-MT500, hydraulic, Giant TR55 rotors [F]180mm, [R]160mm
  • Brake Levers
    Shimano BL-MT501
  • Cassette
    Shimano M6100, 10x51
  • Chain
    KMC X-12
  • Crankset
    Praxis Cadet HD M24, 32t, 55mm chainline XS: 165mm, S:170mm, M:170mm, L:170mm
  • Bottom Bracket
    Praxis, press fit
  • Rims
    Giant XCA WheelSystem
  • Hubs
    [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
  • Spokes
    Sapim
  • Tires
    Maxxis Aspen 29x2.4, foldable, 120tpi, MaxxSpeed, EXO, tubeless
  • Extras
    tubeless prepared, 2.4" max tire size, 34t max chainring size, MRP SL TR2 chain guide
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows



  XS S M L
  LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 400 410 440 470
B Seat Tube Angle (degrees) 75.5° | 76.0° 75.5° | 76.0° 75.5° | 76.0° 75.5° | 76.0°
C Top Tube Length (mm) 555 | 554 572 | 571 594 | 593 611 | 610
D Head Tube Length (mm) 90 95 105 115
E Head Tube Angle (degrees) 66.5° | 67.0° 66.5° | 67.0° 66.5° | 67.0° 66.5° | 67.0°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 116 | 112 116 | 112 116 | 112 116 | 112
H Wheelbase (mm) 1121 | 1120 1138 | 1138 1162 | 1162 1181 | 1180
I Chain Stay Length (mm) 437 | 435 437 | 435 437 | 435 437 | 435
J Bottom Bracket Drop (mm) 51 | 45 51 | 45 51 | 45 51 | 45
K Stack (mm) 602 | 599 607 | 603 616 | 612 625 | 622
L Reach (mm) 399 | 405 415 | 421 435 | 440 450 | 455
M Stand Over Height (mm) 772 | 778 770 | 776 765 | 765 759 | 765
N Handlebar Width (mm) 780 780 780 780
O Stem Length (mm) 60 60 70 70
P Crank Length (mm) 165 170 170 170
