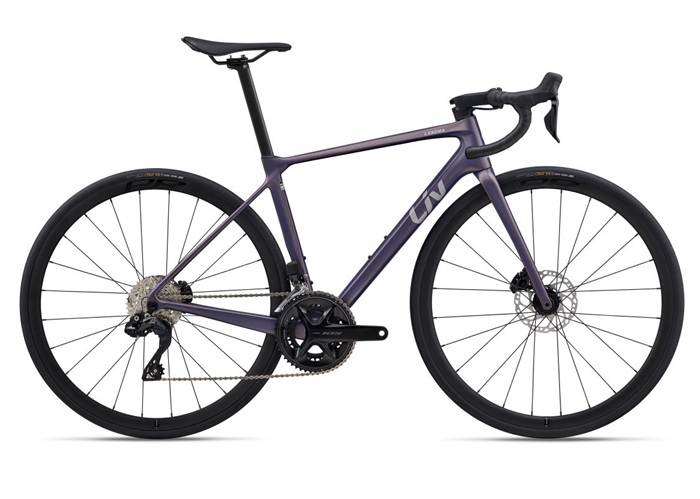

LANGMA ADV 1 2026

R72,990.00 RRP

Features

Features

The official bike of road riding season, the Langma Advanced was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long.

Key Performance Factors

QOM-LEVEL EFFICIENCY

The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.

LIMIT-PUSHING CONTROL

Up to 33mm tire clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.

GAP-WIDENING AERO

With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.

Specification

Specification

Specs
  • Sizes
    XXS, XS, S, M, L
  • Colors
    Meteorite Mist
  • Frame
    Advanced-grade Composite, 12x142mm thru-axle, disc
  • Fork
    Advanced-grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Liv Contact, XXS: 360mm, XS: 360mm, S: 380mm, M: 400mm, L: 420mm
  • Grips
    Liv Stratus Elite 2.0
  • Stem
    Giant Contact AeroLight, XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Liv Approach
  • Pedals
    platform pedal [GCS,GTS], N/A [all other GSC]
  • Shifters
    Shimano 105 Di2
  • Front Derailleur
    Shimano 105 Di2 FD-R7150
  • Rear Derailleur
    Shimano 105 Di2 RD-R7150
  • Brakes
    Shimano 105 Di2 hydraulic, Shimano SM-RT64 rotors, [F] 160mm, [R] 140mm
  • Brake Levers
    Shimano 105 Di2
  • Cassette
    Shimano 105, 12-speed, 11x36
  • Chain
    KMC X12L-1
  • Crankset
    Shimano 105, 34/50 XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 172.5mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-R1, [F] 25mm, [R] 25mm
  • Hubs
    12mm thru-axle
  • Spokes
    stainless
  • Tires
    Giant Gavia Course 0, tubeless, 700x28c, folding
  • Extras
    tubeless prepared, 33mm max tire size
  • Max Tire Clearance
    33mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.


The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

  • XXS
      145 cm to 157 cm
  • XS
      152 cm to 163 cm
  • S
      158 cm to 169 cm
  • M
      164 cm to 176 cm
  • L
      170 cm to 183 cm
bike diagram with measurements referenced in table that follows



  XXS XS S M L
A Seat Tube Length (mm) 390 420 450 480 510
B Seat Tube Angle (degrees) 75.0° 75.0° 74.5° 74.0° 73.5°
C Top Tube Length (mm) 498 508 524 540 555
D Head Tube Length (mm) 105 120 135 155 175
E Head Tube Angle (degrees) 70.0° 71.0° 72.0° 72.5° 72.5°
F Fork Rake (mm) 49 49 49 49 49
G Trail (mm) 74 68 61 58 58
H Wheelbase (mm) 970 973 977 984 994
I Chain Stay Length (mm) 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 72 70 70 70
K Stack (mm) 499 517 532 553 572
L Reach (mm) 364 370 377 382 386
M Stand Over Height (mm) 685 707 736 763 783
N Handlebar Width (mm) 360 360 380 400 420
O Stem Length (mm) 80 80 90 100 110
P Crank Length (mm) 165 165 170 170 172.5
