STP 26in 2024

R23,290.00 RRP

Features

Features

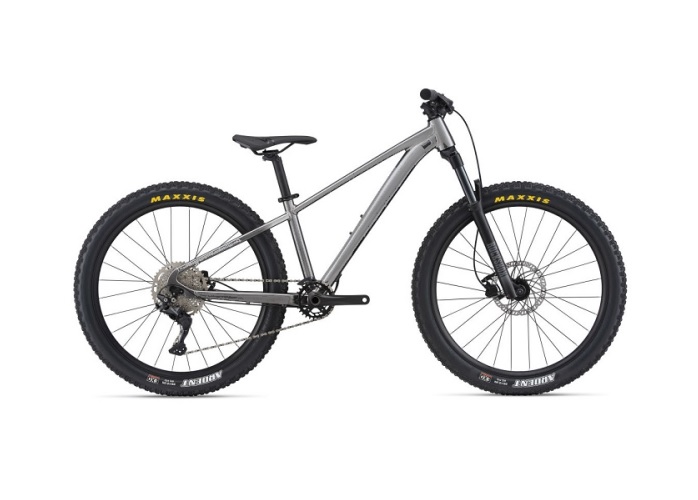

Make the world your playground with the updated STP 26. A longtime favorite for dirt jumping, street shredding and whatever style you dream up, it’s built on a lightweight, super-strong aluminum frame and quick, responsive 26-inch wheels.

With its quickness, durability and lightweight feel, this reengineered STP gives you more pop to help you up your game and do it with style. Made with a gusset-free ALUXX aluminum frame and 26-inch wheels, it has a low saddle height and taller front end so you can rail corners and stick your landings. Disc brakes will help you stop on a dime, and a 120mm suspension fork with a handlebar-mounted remote lets you go from fast street riding to rugged trails with total control. Available in two sizes, Regular and Large, for riders of all heights.

Key Performance Factors

Trail Inspired Geometry

Lightweight, strong and durable aluminum frameset with a longer top tube, tighter rear triangle and slacker head angle delivers confident, agile handling on dirt jumps, trails or street riding sessions.

Quick and responsive

Frame is designed for 26-inch wheels with a low saddle height and taller front end for quick, confident handling.

Maximum Control

Powerful disc brakes and 120mm suspension fork with a remote lockout puts maximum control in the rider’s hands. Grippy, high-volume 2.6” tires are ideal for multi-surface riding on streets, trails or bike parks.

Specification

Specification


Specs
  • Sizes
    regular, large
  • Colors
    Quicksilver
  • Frame
    ALUXX-Grade Aluminum, horizontal dropouts, integrated chain tensioner
  • Fork
    RockShox Recon Silver RL, 15x110mm120mm, with remote lockout
  • Shock
    N/A
  • Handlebar
    Giant Sport, alloy, 31.8
  • Stem
    forged alloy, 0-degree
  • Seatpost
    alloy, two-bolt, 30.9x350
  • Saddle
    Giant Sport
  • Pedals
    platform
  • Shifters
    Shimano
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore
  • Brakes
    Tektro HD-M275, hydraulic disc
  • Brake Levers
    Tektro HD-M275
  • Cassette
    Shimano CSM-4100, 11x46
  • Chain
    KMC X10
  • Crankset
    alloy forged, 30t
  • Bottom Bracket
    threaded
  • Rims
    Giant 26", alloy, 28mm inner width
  • Hubs
    Giant Disc, 28h, QR, alloy, disc
  • Spokes
    stainless, 14g
  • Tires
    Maxxis Ardent, 26x2.25
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.




  • Regular
      140 cm  to 160 cm
  • Large
      155 cm  to 170 cm
bike diagram with measurements referenced in table that follows



    Regular Large
B Seat Tube Angle (degrees) 73.5° 73.5°
C Top Tube Length (mm) 545 575
D Head Tube Length (mm) 100 110
E Head Tube Angle (degrees) 67.0° 67.0°
H Wheelbase (mm) 1086 1117
I Chain Stay Length (mm) 435 435
K Stack (mm) 579 588
L Reach (mm) 374 401
M Stand Over Height (mm) 679.5 717.6
P Crank Length (mm) 155 155
