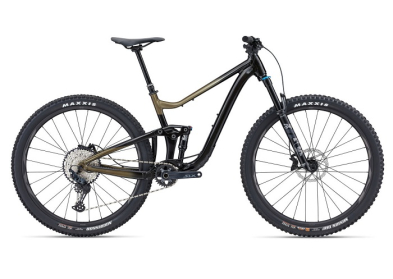

TRANCE 29er 1 2024

R64,990.00 RRP
Clear All

Features

Features


Key Performance Factors

Adjustable frame geometry

Flip chip feature lets you adjust the head tube and seat tube angles, as well as bottom bracket height, to fine tune handling for varying trail conditions and individual riding style.

29er confidence and control

Larger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

Progressive trail design

Lightweight, strong and durable ALUXX SL aluminum frameset features a longer reach and steeper seat tube angle for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features a 120mm trunnion mount shock paired with a 130mm fork up front.

Specification

Specification


Specs
  • Sizes
    S, M, L, XL
  • Colours
    Panther/Pyrite Brown
  • Frame
    ALUXX SL-grade aluminum front and rear triangles, 120mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle
  • Fork
    Fox 34 Performance, 130mm, GRIP damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
  • Shock
    Fox Float Performance, 185/50, custom tuned for Giant
  • Handlebar
    Giant Contact SL TR35, 780x35mm
  • Grips
    Giant Tactal Pro single lock-on
  • Stem
    Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
  • Seatpost
    Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm
  • Saddle
    Giant Romero
  • Pedals
    N/A
  • Shifters
    Shimano SLX SL-M7100, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano SLX RD-M7100
  • Brakes
    Shimano Deore BR-MT520, hydraulic, Shimano RT-56 rotors [F]180mm, [R]180mm
  • Brake Levers
    Shimano BL-MT501
  • Cassette
    Shimano SLX, 10x51
  • Chain
    KMC X-12
  • Crankset
    Shimano SLX, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant AM 29 tubeless ready sleeve-joint rim, 30mm inner width
  • Hubs
    alloy, sealed
  • Spokes
    Sapim
  • Tires
    [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubeless
  • Extras
    tubeless prepared, 2.6" max tire size, 34t max chainring size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

All prices and specifications are subject to change without notice.

Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      163 cm to 172 cm
  • M
      171 cm to 180 cm
  • L
      179 cm to 188 cm
  • XL
      187 cm to 198 cm
bike diagram with measurements referenced in table that follows



    S M L XL
    LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 420 430 465 496
A1 Seat Post Insertion Depth (mm) 290 300 335 366
B Seat Tube Angle (degrees) 77.2° | 78.0° 76.3° | 77.0° 76.3° | 77.0° 76.3° | 77.0°
C Top Tube Length (mm) 561 | 559 599 | 597 626 | 624 663 | 661
D Head Tube Length (mm) 100 110 120 130
E Head Tube Angle (degrees) 65.4° | 66.2° 65.5° | 66.2° 65.5° | 66.2° 65.5° | 66.2°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 126 | 120 126 | 120 126 | 120 126 | 120
H Wheelbase (mm) 1166 | 1165 1195 | 1194 1124 | 1123 1263 | 1262
I Chain Stay Length (mm) 439 | 437 439 | 437 439 | 437 439 | 437
J Bottom Bracket Drop (mm) 45 | 35 45 | 35 45 | 35 45 | 35
K Stack (mm) 610 | 604 619 | 613 628 | 622 637 | 631
L Reach (mm) 422 | 431 447 | 456 472 | 480 507 | 515
M Stand Over Height (mm) 730 | 738 725 | 734 749 | 759 771 | 781
N Handlebar Width (mm) 780 780 780 780
O Stem Length (mm) 40 40 50 50
P Crank Length (mm) 165 170 170 170
Q Wheel Size 29" 29" 29" 29"
