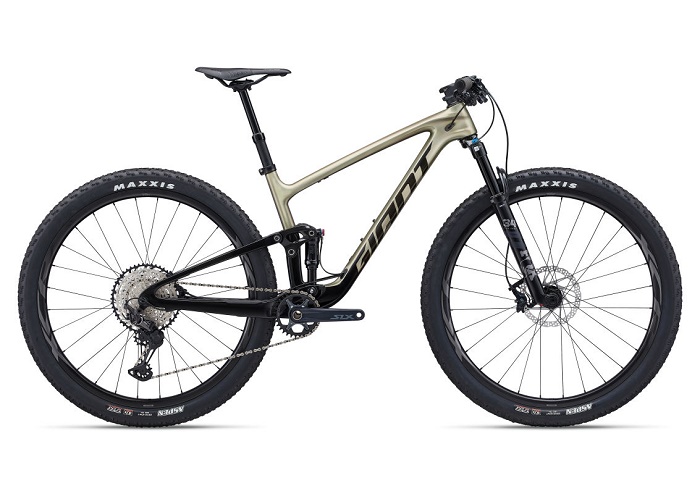

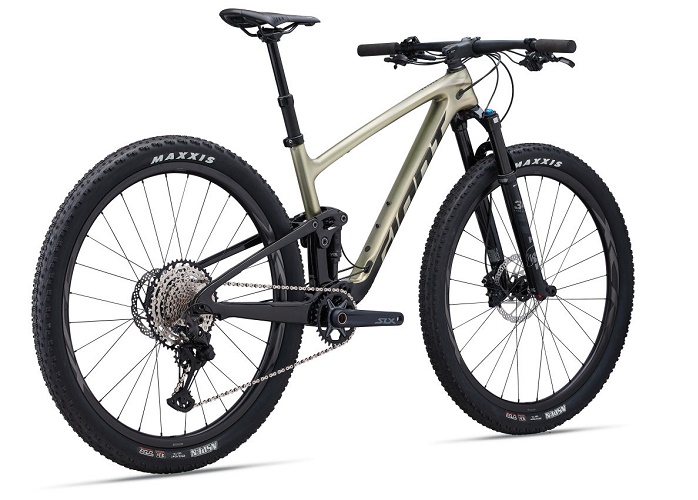

ANTHEM ADV 29er 2 2024

R99,990.00 RRP
Clear All

Features

Features


Built for modern XC racing, this full-composite flyer tackles steep singletrack climbs and technical descents with speed and control. With FlexPoint Pro rear suspension and race-ready geometry, it puts you at the front of the pack.

Key Performance Factors

Ultra-efficient

Advanced composite frameset is 241g lighter than previous generation. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.

Superior control

FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.

29er stability and speed

Frame geometry and suspension are optimised for fast and stable 29-inch wheels. A longer reach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.

Specification

Specification


Specs
  • Sizes
    S, M, L, XL
  • Colours
    Golden Haze/Chrome
  • Frame
    Advanced-Grade Composite front and rear triangles, 100mm FlexPoint Pro suspension, UDH hanger, 12x148mm thru-axle, 55mm Chainline
  • Fork
    Fox 34 Float SC Performance Elite, 110mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, 3 position lockout, custom tuned for Giant
  • Shock
    Fox Float SL Performance Elite, 3 position lockout, custom tuned for Giant
  • Handlebar
    Giant Contact XC Flat, alloy, 35mm
  • Grips
    Giant XC Pro
  • Stem
    Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm
  • Seatpost
    Giant Contact Switch dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 110-140mm travel / 30.9 x 395mm XL: 110-140mm travel / 30.9 x 395mm
  • Saddle
    Fi'zi:k Antares R7 with S-alloy rails
  • Pedals
    N/A
  • Shifters
    Shimano Deore XT SL-M8100, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore XT M8100, Shadow+
  • Brakes
    Shimano SLX BR-M7100, hydraulic, Shimano RT-56 rotors [F]180mm, [R]160mm
  • Brake Levers
    Shimano Deore BL-M7100
  • Cassette
    Shimano SLX M7100, 10x51
  • Chain
    KMC X-12
  • Crankset
    Shimano SLX, 32t S:170mm, M:175mm, L:175mm, XL:175mm, 55mm chainline
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant XCR 2 29 Carbon WheelSystem
  • Hubs
    [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt
  • Spokes
    Sapim
  • Tires
    Maxxis Aspen 29x2.4, foldable, 120tpi, TLR, EXO, tubeless
  • Extras
    Tubeless prepared, 2.4" max tyre size, 34t max chainring size, Giant/MRP CS chain guide
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      163 cm to 172 cm
  • M
      171 cm to 180 cm
  • L
      179 cm to 188 cm
  • XL
      187 cm to 198 cm
bike diagram with measurements referenced in table that follows
    S M L XL
A Seat Tube Length (mm) 390 420 465 495
A1 SeatpostInsertionDepth (mm) 185 225 260 290
B Seat Tube Angle (degrees) 75.5° 75.5° 75.5° 75.5°
C Top Tube Length (mm) 572 604 626 653
D Head Tube Length (mm) 90 95 105 115
E Head Tube Angle (degrees) 67.5° 67.5° 67.5° 67.5°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 109 109 109 109
H Wheelbase (mm) 1127 1159 1183 1212
I Chain Stay Length (mm) 435 435 435 435
J Bottom Bracket Drop (mm) 42 42 42 42
K Stack (mm) 589 593 603 612
L Reach (mm) 420 450 470 495
M Stand Over Height (mm) 745 750 777 800
O Stem Length (mm) 60 70 70 70
P Crank Length (mm) 170 175 175 175
Q Wheel Size 29" 29" 29" 29"
