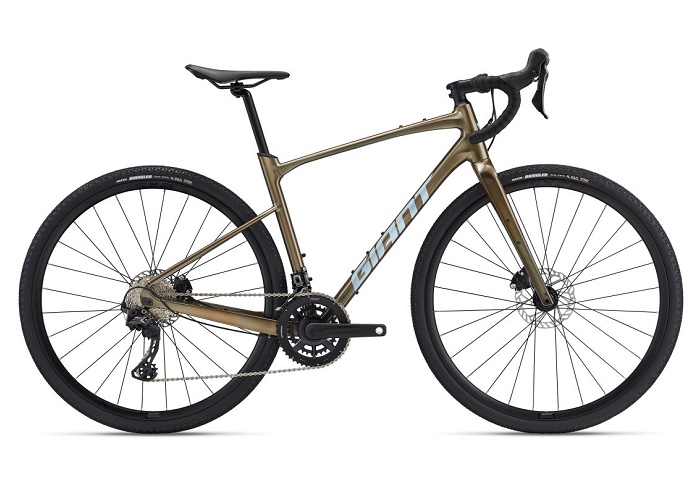

REVOLT 0 2024

R39,990.00 RRP

Size *

Qty:

Clear All

Features

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specification

Sizes

XS, S, M, M/L, L, XL
Colors

Pyrite Brown
Frame

ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock

N/A
Handlebar

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips

cork tape with gel
Stem

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost

Giant D-Fuse, alloy, 14mm offset
Saddle

Giant Approach
Pedals

N/A
Shifters

Shimano GRX RX-610, 2x12
Front Derailleur

Shimano GRX RX-820
Rear Derailleur

Shimano GRX RX-820
Brakes

Shimano BR-RX410 HRD, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers

Shimano GRX RX-610 hydraulic
Cassette

Shimano 105, 11x34
Chain

KMC X12L-1
Crankset

FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket

FSA Mega EXO
Rims

Giant S-X2 Disc wheelset, alloy
Hubs

Giant alloy, 12mm thru-axle
Spokes

stainless
Tires

Maxxis Rambler/Ravager, 700x40c, tubeless
Extras

tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS

155 cm5’1” 166 cm5’5”
S

159 cm5’3” 171 cm5’7”
M

169 cm5’7” 181 cm5’11”
ML

174 cm5’9” 186 cm6’1”
L

179 cm5’10” 191 cm6’3”
XL

189 cm6’2” 200 cm6’7”

bike diagram with measurements referenced in table that follows

		XS	S	M	ML	L	XL
		SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG
A	Seat Tube Length (mm) (inch)	43016.9	45017.7	47018.5	49019.3	51020.1	53020.9
B	Seat Tube Angle (degrees)	74.0°	73.5°	73.5°	73.0°	73.0°	73.0°
C	Top Tube Length (mm) (inch)	54021.3	55021.7	56022	57522.6	58523	60023.6
D	Head Tube Length (mm) (inch)	1254.9	1355.3	1505.9	1656.5	1807.1	1957.7
E	Head Tube Angle (degrees)	70.0°	71.0°	71.5°	72.0°	72.0°	72.0°
F	Fork Rake (mm) (inch)	502	502	502	502	502	502
G	Trail (mm) (inch)	783.1 \| 823.2	722.8 \| 753	682.7 \| 722.8	652.6 \| 682.7	652.6 \| 682.7	652.6 \| 682.7
H	Wheelbase (mm) (inch)	102940.5 \| 103940.9	102540.4 \| 103540.7	103040.6 \| 104040.9	103540.7 \| 104541.1	104541.1 \| 105541.5	106141.8 \| 107142.2
I	Chain Stay Length (mm) (inch)	43016.9 \| 44017.3	43016.9 \| 44017.3	43016.9 \| 44017.3	43016.9 \| 44017.3	43016.9 \| 44017.3	43016.9 \| 44017.3
J	Bottom Bracket Drop (mm) (inch)	803.1 \| 813.2	803.1 \| 813.2	803.1 \| 813.2	803.1 \| 813.2	803.1 \| 813.2	803.1 \| 813.2
K	Stack (mm) (inch)	55621.9	57022.4	58623.1	60223.7	61624.3	63024.8
L	Reach (mm) (inch)	38115	38115	38715.2	39115.4	39715.6	40716
M	Stand Over Height (mm) (inch)	71728.2 \| 72428.5	73428.9 \| 74129.2	75229.6 \| 75929.9	76930.3 \| 77630.6	78630.9 \| 79331.2	80131.5 \| 81031.9
N	Handlebar Width (mm) (inch)	42016.5	42016.5	44017.3	44017.3	46018.1	46018.1
O	Stem Length (mm) (inch)	502	602.4	702.8	803.1	803.1	903.5
P	Crank Length (mm) (inch)	1706.7	1706.7	172.56.8	172.56.8	1756.9	1756.9
Q	Wheel Size	700x 42C \|	700x 42C \|	700x 42C \|	700x 42C \|	700x 42C \|	700x 42C \|
