SALE

TRANCE X ADV E+ ELITE 1 2024

was R189,990.00

now R169,990.00 RRP

Clear All

Features

Features


Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.

Key Performance Factors

Lighter weight

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

Advanced cockpit control

RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

More power

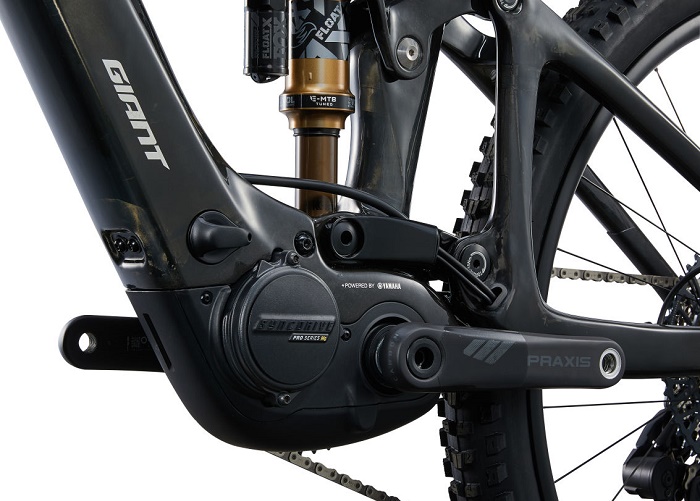

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 400 / SyncDrive Pro2 Mg


  • Range
  • Extreme: 35 km 21 miles
  • Good: 70 km 43 miles
  • Ideal: 130 km 80 miles

Specification

Specification


Specs
  • Motor
    Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
  • Controller
    RideControl Ergo 3, grip integrated
  • Display
    RideControl GO, frame integrated LED display ANT+ Wireless display compatible
  • Battery
    EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
  • Sizes
    S, M, L, XL
  • Colours
    Raw Carbon
  • Frame
    Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
  • Fork
    Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
  • Shock
    Fox Float X Factory, EVOL Large Volume sleeve, custom tuned
  • Handlebar
    Giant Contact SLR Integrated, composite, 35mm
  • Grips
    Giant Tactal Pro-E, single lock-on
  • Stem
    Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
  • Seatpost
    TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm
  • Saddle
    Giant Romero
  • Pedals
    N/A
  • Shifters
    SRAM AXS Pod, 1x12
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    SRAM GX Eagle T-Type AXS
  • Brakes
    SRAM Code R, 4-piston hydraulic disc, 220mm[F], 200mm[R]
  • Brake Levers
    SRAM Code R
  • Cassette
    SRAM GX, T-Type 10x52, 12-speed
  • Chain
    SRAM GX T-Type
  • Crankset
    Praxis Performance Carbon e-crank arms SRAM Eagle T-Type steel 36T chain ring S:160mm, M: 160mm, L:165mm, XL:165mm
  • Bottom Bracket
    N/A
  • Rims
    E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R] 30mm inner width
  • Hubs
    E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
  • Spokes
    Sapim E-Lite [R] Race [F], e-bike optimised
  • Tires
    Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
  • Extras
    Tubeless kit (liquid, valves, levers)
  • Lighting
    Optional:- Giant Recon series e-bike lights available and direct connectable
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.

Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      163 cm to 174 cm
  • M
      171 cm to 182 cm
  • L
      179 cm to 190 cm
  • XL
      187 cm to 199 cm
bike diagram with measurements referenced in table that follows



    S M L XL
    LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 400 425 450 475
A1 Seat Post Insertion Depth (mm) 220 245 270 295
B Seat Tube Angle (degrees) 77.2° | 78.0° 76.0° | 76.7° 76.0° | 76.7° 76.0° | 76.7°
C Top Tube Length (mm) 577 | 575 607 | 605 636 | 634 665 | 663
D Head Tube Length (mm) 95 100 115 130
E Head Tube Angle (degrees) 65.7° | 66.5° 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 113.1 | 108 113.1 | 108 113.1 | 108 113.1 | 108
H Wheelbase (mm) 1194 | 1195 1215 | 1212 1244 | 1244 1275 | 1275
I Chain Stay Length (mm) 447 | 447 447 | 447 447 | 447 447 | 447
J Bottom Bracket Drop (mm) 10 10 10 10
K Stack (mm) 607 | 601 611 | 605 625 | 619 639 | 633
L Reach (mm) 439 | 447 457 | 462 480 | 487 505 | 513
M Stand Over Height (mm) 726 | 735 733 | 742 732 | 741 741 | 750
O Stem Length (mm) 40 40 50 50
P Crank Length (mm) 160 165 165 170
Q Wheel Size 29" [F] 27.5" [R] 29" [F] 27.5" [R] 29" [F] 27.5" [R] 29" [F] 27.5" [R]
