SALE

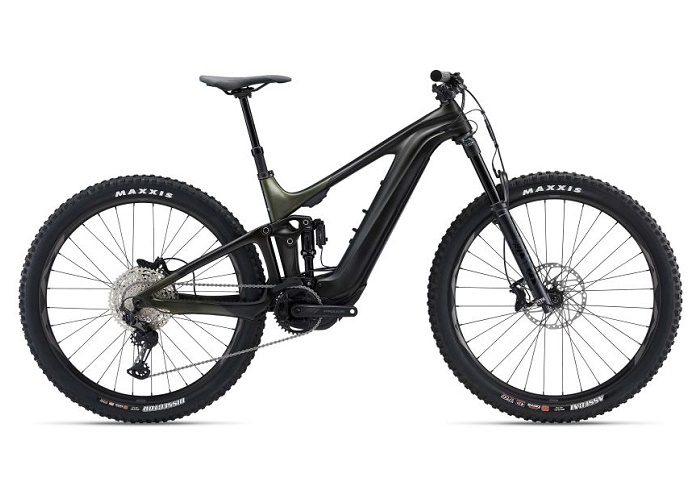

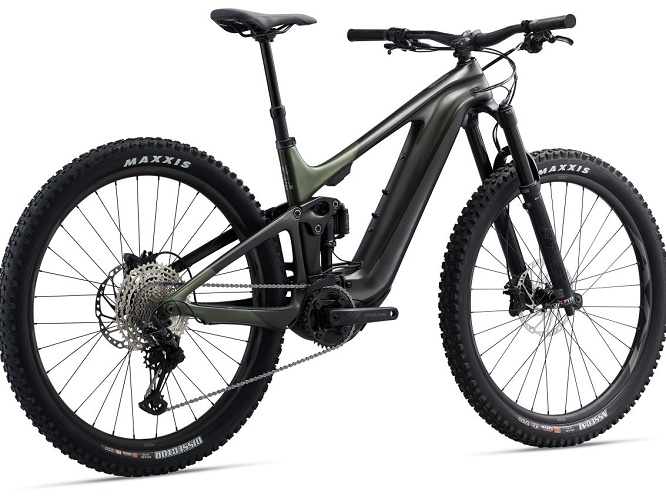

TRANCE X ADV E+ 1 29ER

was R168,290.00

now R152,190.00 RRP

Clear All

Features

Features


A new breed of trail bike that blends power, performance and flat-out fun. With its lightweight composite frame, plush suspension and new motor technology, you’ll never want the ride to end.

Key Performance Factors

Powerful and responsive

New SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.

Adaptable to the terrain

New flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Clean cockpit

The new RideControl Go top-tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak Smart 625 / SyncDrive Pro


  • Range
  • Extreme: 60 KM 37 miles
  • Good: 120 KM 74 miles
  • Ideal: 190 KM 118 miles

Specification

Specification


Specs
  • Motor
    SyncDrive Pro, 85Nm, powered by Yamaha
  • Controller
    RideControl Ergo 3, grip integrated
  • Display
    RideControl GO, frame integrated LED displayANT+ Wireless display compatible
  • Battery
    EnergyPak Smart 625, EnergyPak Plus, 250Wh range extender compatible
  • Sizes
    S, M, L, XL
  • Colours
    Panther / Phantom Green
  • Frame
    Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
  • Fork
    Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15mm, e-bike integrated
  • Shock
    Fox Float X Performance Elite Live Valve, e-bike integrated
  • Handlebar
    Giant Contact 35 Trail, 35mm
  • Grips
    Giant Tactal Pro-E, single lock-on
  • Stem
    Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm
  • Seatpost
    Giant Contact Switch, dropper, 30,9mm (S:125, M:150, L/XL:170)
  • Saddle
    Giant Romero
  • Pedals
    Platform
  • Shifters
    Shimano Deore XT
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    Shimano Deore XT, 12-speed, Shadow+
  • Brakes
    Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm
  • Brake Levers
    Shimano Deore, BL-MT6100
  • Cassette
    Shimano HG-M6100, 10-51T, 12-speed
  • Chain
    KMC e.12 Turbo, EcoProteq, e-bike optimized
  • Crankset
    Praxis Wavet36T Cold Forged 4130 premium steel, Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160mm, M/L:165mm, XL:170mm)
  • Bottom Bracket
    -
  • Rims
    Giant AM 29", Tubeless ready
  • Hubs
    Shimano MT410 Boost, Center-Lock
  • Spokes
    Sapim
  • Tires
    Maxxis Assegai 29x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 120tpi 3C [R]
  • Extras
    Tubeless kit (liquid, valves, levers)
  • Lighting
    Optional: Giant Recon series e-bike lights available and direct connectable (not included)
  • Lock
    Torx 25 Battery Lock with built-in Torque limiter
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.





GET IN TOUCH

GET IN TOUCH


Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

bike




    S M L XL
    LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) (inch) 40015.7 42516.7 45017.7 47518.7
B Seat Tube Angle (degrees) 77.2° | 78.0° 76.0° | 76.7° 76.0° | 76.7° 76.0° | 76.7°
C Top Tube Length (mm) (inch) 57722.7 | 57522.6 60723.9 | 60523.8 63725.1 | 63525 66726.3 | 66526.2
D Head Tube Length (mm) (inch) 953.7 1003.9 1104.3 1204.7
E Head Tube Angle (degrees) 65.7° | 66.5° 65.8° | 66.5° 65.8° | 66.5° 65.8° | 66.5°
F Fork Rake (mm) (inch) 441.7 441.7 441.7 441.7
G Trail (mm) (inch) 1174.6 | 122.44.8 1174.6 | 122.44.8 1174.6 | 122.44.8 1174.6 | 122.44.8
H Wheelbase (mm) (inch) 122048 | 122148.1 123948.8 | 123748.7 126849.9 | 126950 130051.2 | 130151.2
I Chain Stay Length (mm) (inch) 47318.6 | 47318.6 47318.6 | 47318.6 47318.6 | 47318.6 47318.6 | 47318.6
J Bottom Bracket Drop (mm) (inch) 301.2 | 200.8 301.2 | 200.8 301.2 | 200.8 301.2 | 200.8
K Stack (mm) (inch) 60623.9 | 60123.7 61124.1 | 60523.8 62124.4 | 61424.2 63024.8 | 62424.6
L Reach (mm) (inch) 43917.3 | 44717.6 45718 | 46218.2 48219 | 48919.3 51020.1 | 51720.4
M Stand Over Height (mm) (inch) 74029.1 | 74629.4 72728.6 | 73428.9 71828.3 | 72628.6 71528.1 | 72328.5
O Stem Length (mm) (inch) 401.6 401.6 502 502
P Crank Length (mm) (inch) 1606.3 1656.5 1656.5 1706.7
Q Wheel Size 29" 29" 29" 29"
