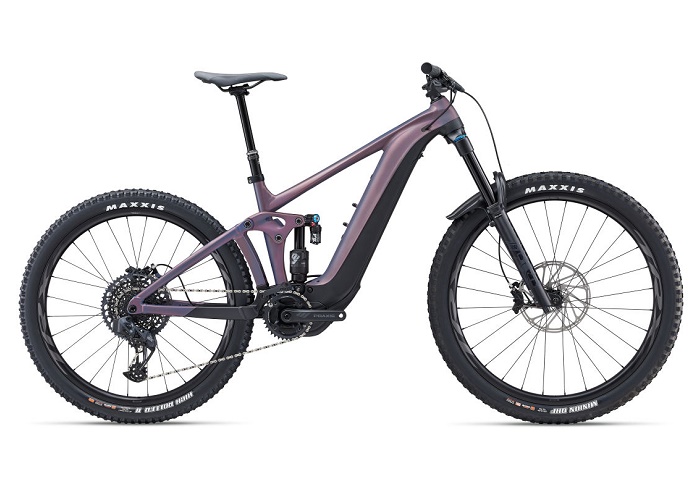

REIGN E+ 1 2023

R179,990.00 RRP
Clear All

Features

Features


Every trail, every steep climb, every thrilling descent. Tested and developed by Giant’s E-bike enduro pros, this proven trail ripper gives you the power to enjoy the best parts of the ride again and again.

Key Performance Factors

Trail technology

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents. Updated geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.

Total control

RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power

Climb steep mountains and enjoy fun descents all day long with the new downtube-integrated EnergyPak featuring 800Wh of capacity.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Energypak 800 / SyncDrive Pro


  • Range
  • Extreme: 70 km 43 miles
  • Good: 140 km 86 miles
  • Ideal: 250 km 155 miles

Specification

Specification


Specs
  • Motor
    SyncDrive Pro, 85Nm, powered by Yamaha
  • Controller
    RideControl GO integrated in TT, RideControl Ergo 3
  • Display
    Wireless display compatible
  • Battery
    EnergyPak Smart 800, EnergyPak Plus range extender compatible (exclude S Size)
  • Sizes
    S, M, L, XL
  • Colors
    Mirage/Black
  • Frame
    ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger
  • Fork
    Fox 38 Float Performance Elite, 29er, 170mm, GRIP2 VVC Damper, Boost 110x15 Kabolt floating axle, with fender, e-Bike optimized
  • Shock
    Fox Float X2 Performance Elite, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned
  • Handlebar
    Giant Contact SL Trail, 35x800mm
  • Grips
    Giant Tactal Pro-E, single lock-on
  • Stem
    Giant Contact SL 35
  • Seatpost
    Rad+ travel adjust dropper, dropper, 30,9mm (S:100~140mm, M:140~170mm, L/XL:170~200mm)
  • Saddle
    Giant Romero Trail
  • Pedals
    Flat pedals
  • Shifters
    SRAM AXS POD controller
  • Front Derailleur
    MRP 1X HD2 custom co-molded chain guide
  • Rear Derailleur
    SRAM GX Eagle NGD
  • Brakes
    SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]
  • Brake Levers
    SRAM Code R
  • Cassette
    SRAM GX, 10-52T, 12-speed
  • Chain
    SRAM GX Eagle PowerLock
  • Crankset
    Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)
  • Rims
    TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width
  • Hubs
    TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F], 148 x 12 [R] Thru Axle
  • Tires
    Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool)
  • Lighting
    -
  • Lock
    Torx 25 Battery Lock with built-in Torque limiter
  • Carrier
    -
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

<a class="btn" btn-default="" track-ga4-event="" data-ga4_model_category="bikes/mountain" bikes="" electric="" mountain="" data-ga4_model_name="Reign" e+="" 1="" data-ga4_name="download_pdf" data-cke-saved-href="https://www.giant-bicycles.com/za/bikes/generate-pdf-url/3099" href="https://www.giant-bicycles.com/za/bikes/generate-pdf-url/3099" onclick="trackEventGlobalAndLocal('PDF','Download','Giant" -="" reign="" 3099')="" rel="nofollow" target="_blank"> Download PDF

<a class="btn" btn-default="" track-ga4-event="" data-ga4_model_category="bikes/mountain" bikes="" electric="" mountain="" data-ga4_model_name="Reign" e+="" 1="" data-ga4_name="download_pdf" data-cke-saved-href="https://www.giant-bicycles.com/za/bikes/generate-pdf-url/3099" href="https://www.giant-bicycles.com/za/bikes/generate-pdf-url/3099" onclick="trackEventGlobalAndLocal('PDF','Download','Giant" -="" reign="" 3099')="" rel="nofollow" target="_blank">All specifications listed are subject to change without notice.

GET IN TOUCH

GET IN TOUCH


Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      163 cm5’4” to 174 cm5’9”
  • M
      171 cm5’7” to 182 cm6’0”
  • L
      179 cm5’10” to 190 cm6’3”
  • XL
      187 cm6’2” to 198 cm6’6”
bike



    S M L XL
    LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) (inch) 40015,7 42516,7 45017,7 47518,7
B Seat Tube Angle (degrees) 76,7° | 77,5° 76,7° | 77,5° 76,7° | 77,5° 76,7° | 77,5°
C Top Tube Length (mm) (inch) 56922,4 | 56822,4 59523,4 | 59423,4 62224,5 | 62124,4 64925,6 | 64825,5
D Head Tube Length (mm) (inch) 1003,9 1003,9 1104,3 1204,7
E Head Tube Angle (degrees) 63,7° | 64,5° 63,7° | 64,5° 63,7° | 64,5° 63,7° | 64,5°
F Fork Rake (mm) (inch) 441,7 441,7 441,7 441,7
G Trail (mm) (inch) 135,55,3 | 132,15,2 1355,3 | 1325,2 1355,3 | 1325,2 135,55,3 | 132,15,2
H Wheelbase (mm) (inch) 120947,6 | 121047,6 123648,7 | 123748,7 126549,8 | 126649,8 129551 | 129651
I Chain Stay Length (mm) (inch) 45718 | 45517,9 45417,9 | 45417,9 45417,9 | 45417,9 45417,9 | 45417,9
J Bottom Bracket Drop (mm) (inch) 251 | 150,6 251 | 150,6 251 | 150,6 251 | 150,6
K Stack (mm) (inch) 63625 | 63224,9 63525 | 63224,9 64525,4 | 64125,2 65425,7 | 65025,6
L Reach (mm) (inch) 42516,7 | 43016,9 45017,7 | 45517,9 47518,7 | 48018,9 50019,7 | 50519,9
M Stand Over Height (mm) (inch) 78530,9 | 78931,1 77230,4 | 77630,6 77130,4 | 77530,5 76830,2 | 77230,4
N Handlebar Width (mm) (inch) 80031,5 80031,5 80031,5 80031,5
O Stem Length (mm) (inch) 401,6 401,6 502 502
P Crank Length (mm) (inch) 1606,3 1606,3 1656,5 1656,5
Q Wheel Size R27.5" / F29" R27.5" / F29" R27.5" / F29" R27.5" / F29"
