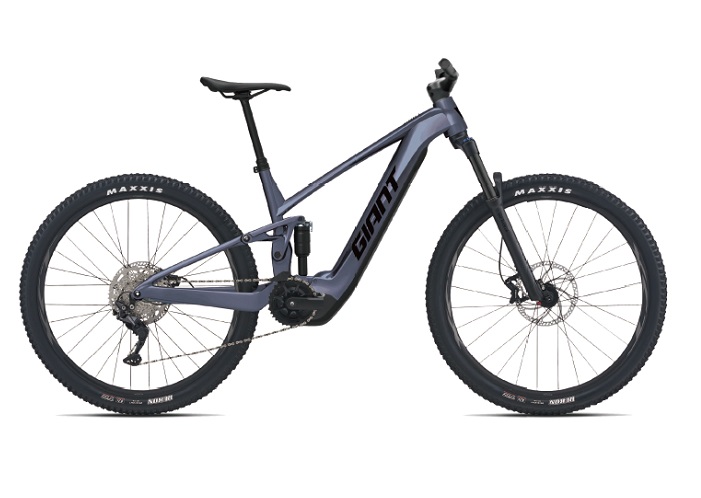

STANCE E+ 1 PRO LTD 2025

R99,990.00 RRP
Clear All

Features

Features


Ride trails with confidence, control and flat-out fun. This new E-bike has a powerful motor, plush suspension, and intuitive controls that can take your trail adventures to a whole new level.

Key Performance Factors

Powerful pedaling support

The new compact SyncDrive Sport motor has Smart Assist technology and is sonically tuned for smooth, quiet performance. It delivers 75Nm of torque for high power, even at low speeds on technical trails.

Confident handling

ALUXX SL aluminum frame with 120mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.

Long-lasting fun

The new EnergyPak offers ample range and the integrated battery pack makes charging quick and easy.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Energypak 625 / SyncDrive Sport


  • Range
  • Extreme: 60 km 37 miles
  • Good: 110 km 68 miles
  • Ideal: 190 km 118 miles

Specification

Specification


Specs
  • Motor
    SyncDrive Pro, 85Nm, powered by Yamaha
  • Controller
    RideControl Dash
  • Display
    RideControl Dash, full color lcd screen
  • Battery
    EnergyPak Smart 800, EnergyPak Plus 250Wh range extender compatible
  • Sizes
    S, M, L, XL
  • Colors
    Airglow
  • Frame
    ALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset
  • Fork
    RockShox 35 Silver, 140mm, 1.8" tapered steerer, 110x15 Maxle Stealth
  • Shock
    SR Suntour Raidon R, 190x45mm, custom tuned
  • Handlebar
    Giant Connect TR Riser 31.8x780mm
  • Grips
    Giant Tactal single lock-on
  • Stem
    Giant Contact
  • Seatpost
    Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
  • Saddle
    Giant Sport
  • Pedals
    Flat pedal
  • Shifters
    Shimano Deore
  • Rear Derailleur
    Shimano Deore 12-speed
  • Brakes
    Tektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm
  • Brake Levers
    Tektro HD-M750
  • Cassette
    Shimano CS-M6100-12, 10-51T, 12-speed
  • Chain
    KMC e.12 Turbo, EcoProteq, e-bike optimized
  • Crankset
    FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
  • Bottom Bracket
    n/a
  • Rims
    Giant AM 29", Tubeless ready, 30mm inner width
  • Hubs
    Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
  • Spokes
    Sapim E-Lite [R] Race [F], e-bike optimized
  • Tires
    Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 29X2.40" Foldable, WT, TLR, EXO, 60TPI [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool)
  • Lighting
    -
  • Lock
    Torx 25 Battery Lock with built-in Torque limiter
  • Carrier
    -
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.





Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      163 cm to 172 cm
  • M
      171 cm to 180 cm
  • L
      179 cm to 188 cm
  • XL
      187 cm to 198 cm
bike diagram with measurements referenced in table that follows



    S M L XL
A Seat Tube Length (mm) 400 425 450 475
B Seat Tube Angle (degrees) 76.0° 76.0° 76.0° 76.0°
C Top Tube Length (mm) 580 607 639 671
D Head Tube Length (mm) 105 115 125 135
E Head Tube Angle (degrees) 65.5° 65.5° 65.5° 65.5°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 124 124 124 124
H Wheelbase (mm) 1204 1233 1267 1301
I Chain Stay Length (mm) 468 468 468 468
J Bottom Bracket Drop (mm) 40 40 40 40
K Stack (mm) 618 627 636 646
L Reach (mm) 425 450 480 510
M Stand Over Height (mm) 760 760 780 796
N Handlebar Width (mm) 780 780 780 780
O Stem Length (mm) 40 40 50 50
P Crank Length (mm) 165 165 165 165
Q Wheel Size 29" 29" 29" 29"
