FATHOM E+ 3 LTD 2025

R55,990.00 RRP
Clear All

Features

Features

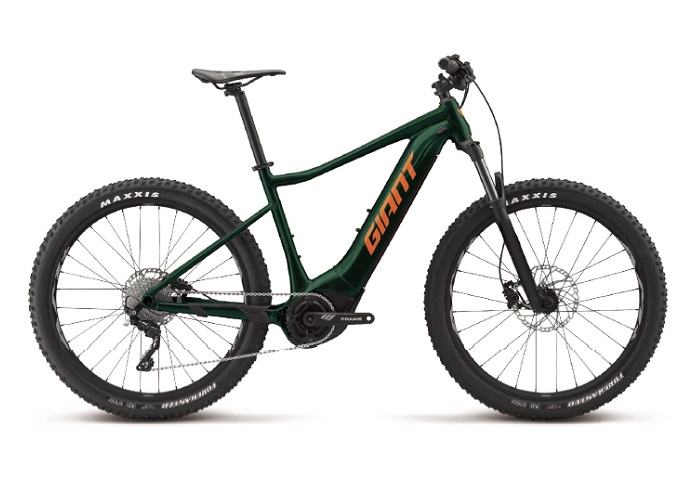

Take control of the trail with this fun new hardtail E-bike. Now you can climb with greater ease and ride farther—the perfect formula for a great day on the trail.

Key Performance Factors

Smooth power delivery

The new SyncDrive Sport motor delivers smooth, instantaneous power with 70Nm of torque to help riders climb steep hills and extend their trail riding capabilities.

Balanced, confident handling

Lightweight aluminum frame with trail-friendly geometry, 120mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control even in the toughest off-road terrain.

Long-lasting battery

Integrated EnergyPak with 500Wh of capacity is easy to charge up to 60 percent in 2 hours with our 4A smart charger compact.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak 500 / SyncDrive Sport


  • Range
  • Extreme: 52 km 32 miles
  • Good: 105 km 65 miles
  • Ideal: 175 km 108 miles

Specification

Specification


Specs
  • Motor
    Giant SyncDrive Sport, 70Nm, PedalPlus 6-sensor technology
  • Sensor
    Giant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
  • Display
    Giant RideControl Dash, high-angle visibility, full color LCD display
  • Battery
    Giant EnergyPak 500Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible
  • Charger
    Giant EnergyPak 4A smart charger compact, 60% charge in 2:00h
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, L, XL, XXL
  • Colors
    Kelp Forest
  • Frame
    ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, 141mm Boost QR, ISS, EnergyPak Plus Range Extender compatible, integrated KSA18 kickstand mount
  • Fork
    SR Suntour XCM32 NLO DS 15AH2 29, 120mm travel, tapered steerer, lockout
  • Handlebar
    Giant Connect TR Riser 31.8 alloy 750mm [S], 780mm [ M-XXL]
  • Grips
    Giant Tactal single lock-on
  • Stem
    Giant Contact 31.8 alloy
  • Seatpost
    Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
  • Saddle
    Giant Sport
  • Pedals
    Aluminum Platform
  • Shifters
    microSHIFT ADVENT e-optimized
  • Rear Derailleur
    microSHIFT ADVENT, 9-speed
  • Brakes
    Tektro HD-M285, hydraulic disc, 180mm
  • Brake Levers
    Tektro HD-M285
  • Cassette
    microSHIFT ADVENT, 11-42T, 9-speed, e-optimized
  • Chain
    KMC e.9 Sport, e-bike optimized
  • Crankset
    FSA MegaTooth direct-mount 1X steel 36T alloy crank arm
  • Rims
    Giant XCT 29 Tubeless Ready 25mm e-bike optimized
  • Hubs
    Shimano HB-TC500-15 100x15 [F], MT200-B 141mm OLD QR [R]
  • Spokes
    Stainless steel
  • Tires
    Maxxis Rekon 29x2.4" Wire Bead 60TPI
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Download PDF

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • S
      162 cm to 172 cm
  • M
      169 cm to 179 cm
  • L
      176 cm to 186 cm
  • XL
      183 cm to 193 cm
  • XXL
      190 cm to 200 cm
bike diagram with measurements referenced in table that follows



    S M L XL XXL
A Seat Tube Length (mm) 380 420 460 495 530
A1 Seat Post Insertion Depth (mm) 220 260 300 320 360
B Seat Tube Angle (degrees) 75.0° 75.0° 75.0° 75.0° 75.0°
C Top Tube Length (mm) 590 610 630 650 670
D Head Tube Length (mm) 110 120 130 140 150
E Head Tube Angle (degrees) 66.0° 66.0° 66.0° 66.0° 66.0°
F Fork Rake (mm) 51 51 51 51 51
G Trail (mm) 113.4 113.4 113.4 113.4 113.4
H Wheelbase (mm) 1197 1219 1241 1262 1284
I Chain Stay Length (mm) 470 470 470 470 470
J Bottom Bracket Drop (mm) 65 65 65 65 65
K Stack (mm) 647 656 665 675 684
L Reach (mm) 416 434 451 469 486
M Stand Over Height (mm) 730 757 750 773 776
N Handlebar Width (mm) 750 780 780 780 780
O Stem Length (mm) 40 40 50 50 50
P Crank Length (mm) 165 165 165 165 165
Q Wheel Size [F] 29" [R [F] 29" [R [F] 29" [R [F] 29" [R [F] 29" [R
