DEFY ADV E+ ELITE 2

- TO BE ANNOUNCED

Features

Features


With its smooth-riding composite frame, lightweight battery, and new SyncDrive Move Plus integrated rear hub motor, the Defy Advanced E+ is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.

Key Performance Factors

SEAMLESS POWER

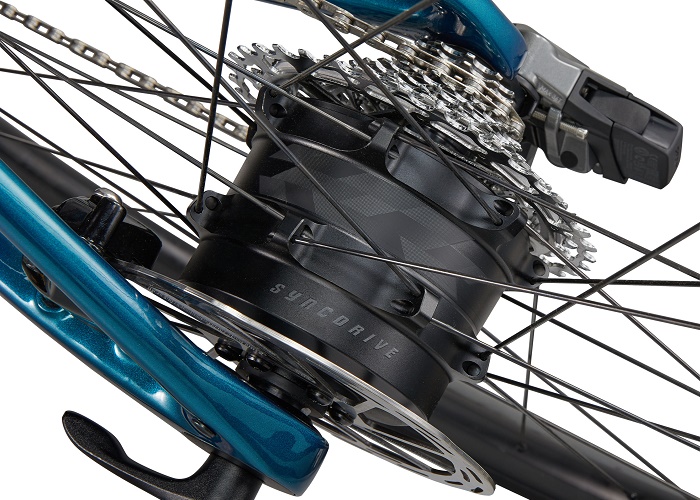

The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedaling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION

The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE

A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with tubeless tires, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Energypak 400 / SyncDrive Move


  • Range
  • Extreme: 40 km 24 miles
  • Good: 70 km 43 miles
  • Ideal: 100 km 62 miles

Specification

Specification


Specs
  • Motor
    SyncDriveMove Plus Hub drive 75Nm (Effective)
  • Sensor
    Mode support switch from SRAM Blips
  • Display
    Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak 4A smart charger, 60% in 1:45
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, ML, L, XL
  • Colors
    Sea Sparkle / Black
  • Frame
    Advanced-grade composite,12x145 thru-axle
  • Fork
    Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
  • Shock
    -
  • Handlebar

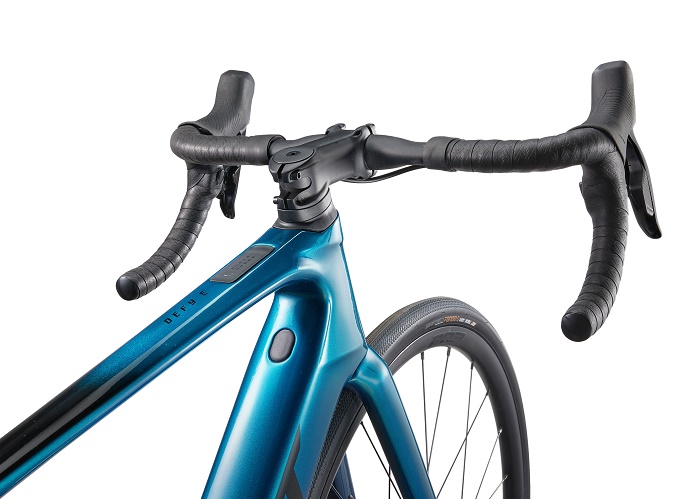

    Giant Contact SL D-Fuse 31.8 alloy
  • Stem
    Contact SL Aerolight 31.8 alloy
  • Seatpost
    Giant D-Fuse, Composite, 14mm offset
  • Saddle
    Giant Approach
  • Shifters
    Sram Rival eTap AXS
  • Front Derailleur
    Sram Rival eTap AXS
  • Rear Derailleur
    Sram Rival eTap AXS
  • Brakes
    Sram Rival eTap HRD, Paceline 160mm center-lock [F] 160mm 6-bols [R]
  • Brake Levers
    Sram Rival eTap AXS HRD
  • Cassette
    Sram Rival XG-1250 10x36T 12-speed
  • Chain
    Sram Rival 12-speed

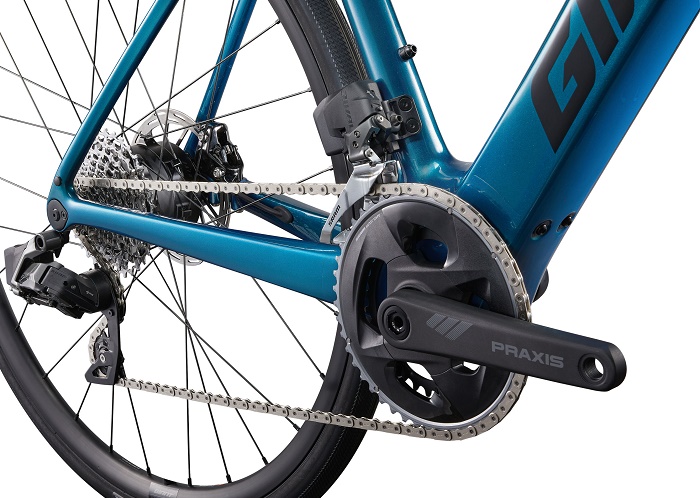

  • Crankset
    "Sram Force X-SYNC 33/46T BCD107 chain ring Praxis E crank Alloy ISIS"
  • Bottom Bracket
    Giant E+ System BBSS
  • Rims
    Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle
  • Spokes
    Sapim spoke E-Light [R] Race [F], e-bike optimized
  • Tires
    Giant Gavia Fondo 0 700x32C 170TPI Tubeless Foldable
  • Extras
    Fender adapter
  • Lighting

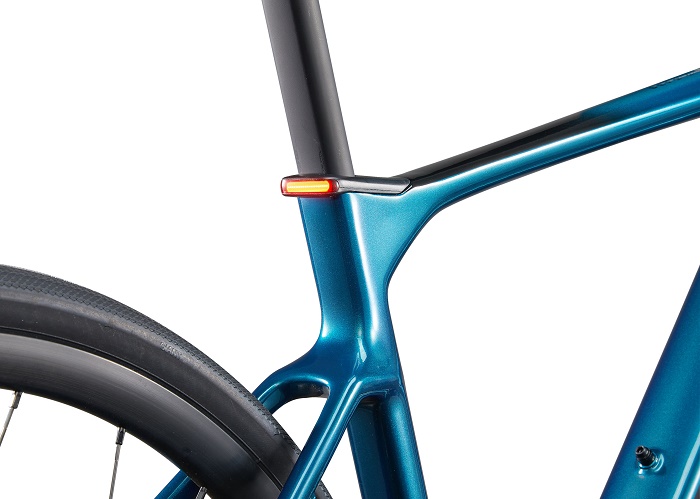

    Seatpost clamp integrated tail light
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.

Geometry

Geometry


Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.



  • M
      172 cm  to 180 cm
  • ML
      178 cm  to 186 cm
  • L
      184 cm  to 192 cm
  • XL
      190 cm  to 198 cm
bike diagram with measurements referenced in table that follows



    M ML L XL
A Seat Tube Length (mm) 480 515 535 565
B Seat Tube Angle (degrees) 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 545 560 575 590
D Head Tube Length (mm) 145 167 187 205
E Head Tube Angle (degrees) 72.5° 72.5° 72.5° 72.5°
F Fork Rake (mm) 50 50 50 50
G Trail (mm) 58.6 58.6 58.6 58.6
H Wheelbase (mm) 995.2 1007.5 1022.7 1037.9
I Chain Stay Length (mm) 420 420 420 420
J Bottom Bracket Drop (mm) 80 75 75 75
K Stack (mm) 560.2 576.1 595.2 612.4
L Reach (mm) 378.9 383.6 392.8 402.6
M Stand Over Height (mm) 745.5 779 799 824
N Handlebar Width (mm) 420 420 440 440
O Stem Length (mm) 100 110 110 120
P Crank Length (mm) 172.5 172.5 175 175
Q Wheel Size 700C 700C 700C 700C
To top
